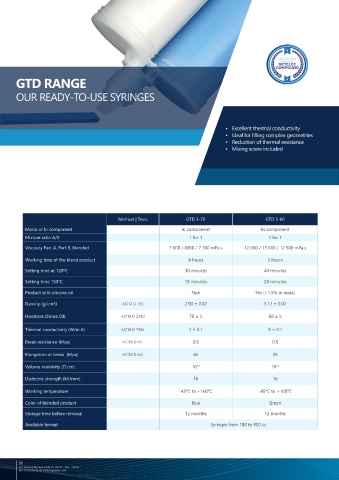

GTD RANGE

OUR READY-TO-USE SYRINGES

• Excellent thermal conductivity
• Ideal for filling complex geometries
• Reduction of thermal resistance
• Mixing screw included

THERMALLY

AND ELECTRICALLY

Method | Tests GTD 3-70 GTD 5-60

Mono or bi component Bi component Bi component
Mixture ratio A/B 1 for 1 1 for 1 CONDUCTIVE SILICONE

Viscosity Part A, Part B, blended 7 000 / 8000 / 7 500 mPa.s 12 000 / 13 000 / 12 500 mPa.s
Working time of the blend product 4 hours 5 hours

Setting time at 120°C 30 minutes 40 minutes
Setting time 150°C 15 minutes 20 minutes
Product with silicone oil Non Yes (<1.5% in mass)

Density (g/cm3) ASTM D 792 2.90 ± 0.02 3.12 ± 0.02

Hardness (Shore 00) ASTM D 2240 70 ± 5 60 ± 5

Thermal conductivity (W/m.K) ASTM D 7984 3 ± 0.1 5 ± 0.1
Break resistance (Mpa) ASTM D 412 0.5 0.5

Elongation at break (Mpa) ASTM D 412 45 35

Volume resistivity (Ω.cm) 10 14 10 14
Dielectric strength (kV/mm) 18 16

Working temperature -45°C to +160°C -45°C to +160°C

Color of blended product Blue Green
Storage time before removal 12 months 12 months
Available format Syringes from 180 to 900 cc
