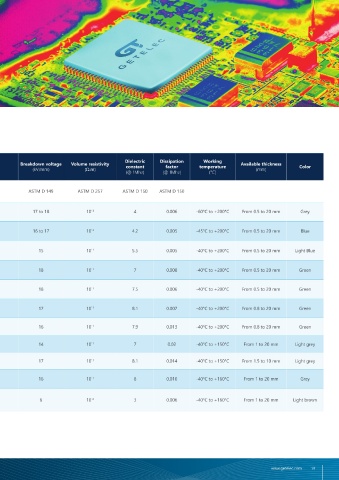

Presentation of GTG range
THERMAL CONDUCTIVITY UP TO 10 W/M.K | SOFT & FLEXIBLE | UL V0
Dielectric Dissipation Working
Hardness Thermal conductivity Density Elongation at break Dielectric strength Breakdown voltage Volume resistivity Available thickness
Range of products constant factor temperature Color
(Shore 00) (W/m.K) (g/cm 3) (%) (kV/mm) (kV/mm) (Ω.m) (mm)
(@ 1Mhz) (@ 1Mhz) (°C)
ASTM D 2240 ASTM D 7984
Measured after MTPS (Modified Transient ASTM D 792 ASTM D 412 ASTM D 149 ASTM D 149 ASTM D 257 ASTM D 150 ASTM D 150
3 sec Plane Source)
GTG 1 W/m.K From 40 to 85 ± 5 1 to 1.3 2.6 < 200 to 200 5 to 11 17 to 18 10 13 4 0.006 -60°C to +200°C From 0.5 to 20 mm Grey
GTG 2 W/m.K From 40 to 85 ± 5 2 to 2.5 2.7 to 2.75 < 100 to 100 14 to 18 16 to 17 10 12 4.2 0.005 -45°C to +200°C From 0.5 to 20 mm Blue
GTG 3 W/m.K From 35 to 85 ± 5 3 to 3.5 2.9 to 2.95 < 100 to 100 11 15 10 11 5.5 0.005 -40°C to +200°C From 0.5 to 20 mm Light Blue
GTG 4 W/m.K From 40 to 85 ± 5 4 3.09 < 100 to 100 16 18 10 11 7 0.008 -40°C to +200°C From 0.5 to 20 mm Green
GTG 5 W/m.K From 40 to 85 ± 5 5 3.12 < 50 to 50 15 18 10 11 7.5 0.006 -40°C to +200°C From 0.5 to 20 mm Green
GTG 6 W/m.K From 40 to 85 ± 5 6 3.23 <50 to 50 14 17 10 11 8.1 0.007 -40°C to +200°C From 0.8 to 20 mm Green
GTG 7 W/m.K From 35 to 60 7.5 3.23 < 40 10 16 10 11 7.9 0.013 -40°C to +200°C From 0.8 to 20 mm Green
65 ± 5 8 3.3 < 30 8 14 10 11 7 0.02 -40°C to +150°C From 1 to 20 mm Light grey
GTG 8 W/m.K
80 ± 5 8.6 3.02 > 20 11 17 10 11 8.1 0.014 -40°C to +150°C From 1.5 to 10 mm Light grey
GTG 9 W/m.K 80 ± 5 9.1 ± 0.2 3.35 > 20 11 16 10 11 8 0.010 -40°C to +160°C From 1 to 20 mm Grey
GTG 10 W/m.K 50 ± 5 10.01 ± 0.2 3.44 > 20 7 6 10 10 3 0.006 -40°C to +160°C From 1 to 20 mm Light brown
