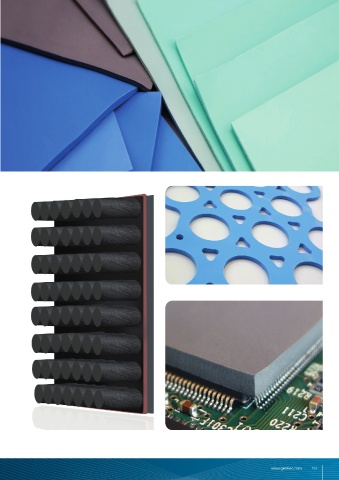

Thermally conductive electrical insulators

Thermally conductive electrical insulators are used for component/heat sink interface mounting.

They offer many advantages over conventional greased materials. They eliminate the problems associated with the use
of silicone grease.

These elastomers are reinforced with glass cloth, are flexible and absorb differences in flatness between the component
and the heat sink.

MILITARY APPLICATIONS INDUSTRIAL APPLICATION
1671 ST 81 ST 80 ST 83 ST 85 ST 79 ST 70 1674 ST 100
Oxide Oxide
Alumin. Oxide Alumin.
Replaces Be O Be O Alumin. Beryllium Alumin. MICA GREASE
grease
grease
Anodised grease Anodised
grease grease
Tensile strength kg/cm² 28 100 30 - 30 105 250 105 130
Tear strength kg/cm² 17.8 50 12 - 12 17.8 70 17.8 70
Elongation % 2 2 2 2 2 2 2 2 2
Hardness shore A 90 85 90 90 90 90 72 90 -
Breakdown voltage min. V 4000 16000 12000/mn 4000/mn 12000/mn 1500 10000 1500 12000
Working temperature °C 200 200 200 200 200 200 200 200
Density g/cm3 1.55 1.5 1.5 - 1.5 2.2 2.18 2.2 -
Thickness mm 0.38 0.45 0.3 0.4 0.45 0.25 0.3 0.25 0.8
Color White White White White White Blue Dark Blue Blue White
Resistivity Ω.cm 10x10 14 10x10 14 1.5x10 14 10x10 13 1.5x10 14 2x10 14 5x10 13 2x10 14 1.1x10 15
Thermal conductivity W/m.K 2.6 5.0 5.0 - - 1.3 1.2 1.0 5.0
Dielectric constant 10 Hz 4 2.6 4 4 4 4 4.2 4 -
6
Thermal resistance C/W 0.22 0.30 0.30 0.2 0.38 0.5 0.8 0.5 0.40

Available format Sheet Customized cutting

Sheet
Reference Dimension in mm (±0.3mm)
1671 203 x 203 / 254 x 254 / 420 x 570 / 300 x 300
ST 81 270 x 210 /
ST 80 210 x 210 / 400 x 200 / 510 x 440
ST 83 On request
ST 85 210 x 210 / 400 x 200 / 420 x 420 / 510 x 440
ST 79 203 x 203 / 406 x 406
ST 70 On request
1674 203 x 203 / 406 x 406
ST 100 On request

Contact us for specific dimensions
