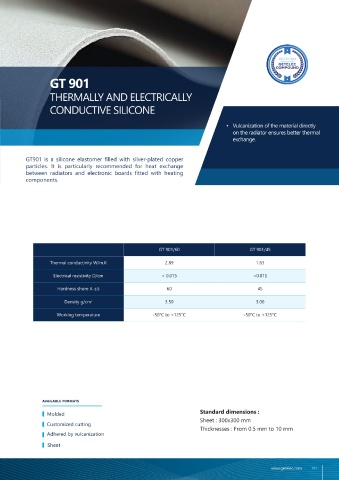

GT 906 & GT 907 GT 901

THERMALLY CONDUCTIVE SILICONE THERMALLY AND ELECTRICALLY
CONDUCTIVE SILICONE

• Recommended for encapsulating and
coating electrical and component • Vulcanization of the material directly
• Can be used as a thermal drain on the radiator ensures better thermal
• Electrical insulator exchange.
• Continuous operating temperature :
-50°C et +220°C
Our GT906 and GT907 are composed of a RTV polyaddition GT901 is a silicone elastomer filled with silver-plated copper
silicone elastomer that can be cast and cross-linked at room particles. It is particularly recommended for heat exchange
temperature without sodium commitment. The vulcanized between radiators and electronic boards fitted with heating
product has high hardness and excellent thermal conductivity. components.

Standard - Tests GT906 GT907

Mechanical properties
Color Brown-red Brown-red
Density (g/cm ) DIN 53479 A 2.35 1.43 to 23°C
3
Hardness (shore A) DIN 53505 80 55
Break resistance (N/mm²) DIN 53504 S 1 2 3.5 GT 901/60 GT 901/45
Elongation (%) DIN 53504 S 1 50 10
Thermal conductivity W/m.K 2.89 1.63
Tear strength (N/mm) ASTM D 624 B 8 4
Electrical resistivity Ω/cm < 0.015 <0.015
Thermal properties
Linear expansion coefficient 104 10-4 Hardness shore A ±5 60 45
0-150°C (m/m.K) 1.6 1.5
Thermal conductivity (W/m.K) DIN 52612 1.34 0.55 Density g/cm 3 3.50 3.00
Electrical properties Working temperature -50°C to +125°C -50°C to +125°C
Dielectric strength (Thickness 1mm) 23 23
(kV/mm) DIN 53482

1 015 measured dry at 23°C
Volume resistivity (Ω.cm) DIN 53481 21 015
1 014 measured damp at 60°C
50 Hz 5 KHz 5 MHz 50 Hz
Dielectric constant DIN 534843 6.1 5.7 5.3 3.7
Dissipation factor (tan) DIN 53483 210 10-4 140 10-4 85 10-4 370 10-4
Breakdown voltage (kV) DIN 57303 / ASTM 2302-73 3.5

available format available formats

Molded Standard sizes : Molded Standard dimensions :
Sheets : 300x300 mm Sheet : 300x300 mm
Customized cutting Customized cutting
Thicknesses : From 0.5 mm to 10 mm Thicknesses : From 0.5 mm to 10 mm
Adhered by vulcanization Adhered by vulcanization

Sheet Sheet

100
