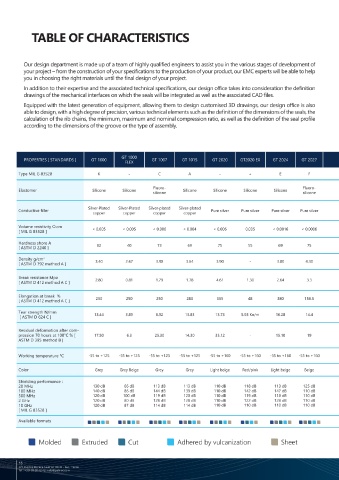

TABLE OF CHARACTERISTICS Sheet size 300mm x 300mm Guide to our standard Sheet size 150mm x 150mm

Thickness (mm) Tolerances STD tolerances Thickness (mm) Tolerances STD

0.20 ± 0.07 The tolerances applicable for 0.20 +0.05 / -0
Our design department is made up of a team of highly qualified engineers to assist you in the various stages of development of control are those shown on this
your project – from the construction of your specifications to the production of your product, our EMC experts will be able to help From 0.30 to 0.40 ±0.10 page except when a FAI, a DVI From 0.30 to 0.40 ±0.10
you in choosing the right materials until the final design of your project. 0.50 ± 0.15 or a specific control document 0.50 ± 0.07
In addition to their expertise and the associated technical specifications, our design office takes into consideration the definition 0.60 ± 0.15 are requested to Getelec. 0.60 ± 0.10
drawings of the mechanical interfaces on which the seals will be integrated as well as the associated CAD files.
0.70 ± 0.15 0.70 ± 0.10
Equipped with the latest generation of equipment, allowing them to design customised 3D drawings, our design office is also 0.80 ± 0.18 0.80 ± 0.15
able to design, with a high degree of precision, various technical elements such as the definition of the dimensions of the seals, the
calculation of the rib chains, the minimum, maximum and nominal compression ratio, as well as the definition of the seal profile 0.90 ± 0.18 0.90 ± 0.15
according to the dimensions of the groove or the type of assembly. From 1.0 to 2.0 ± 0.20 From 1.0 to 2.0 ± 0.15
Greater than 2 ± 13% Greater than 2 ± 13%

GT 1000 GT5000
PROPERTIES [ STANDARDS ] GT 1000 FLEX GT 1007 GT 1015 GT 2020 GT2020 EX GT 2024 GT 2027 GT 3000 GT 3100 GT 3107 GT 3300 GT 5000 FLEX GT5000 EX GT 5007 GT 5200 BL 10000 BL 10007

Type MIL G 83528 K - C A - + E F L - - - B - D

Elastomer Silicone Silicone Fluoro- Silicone Silicone Silicone Silicone Fluoro- Silicone Silicone Fluoro- Silicone Silicone Silicone Silicone Fluoro- EPDM Silicone Fluoro-
silicone silicone silicone silicone silicone

Conductive filler Silver-Plated Silver-Plated Silver-plated Silver-plated Pure silver Pure silver Pure silver Pure silver Silver-plated Nickel Nickel Nickel Silver-plated Silver-plated Silver-plated Silver-plated Silver-plated Carbon Carbon
copper copper copper copper nickel Graphite Graphite aluminum aluminum aluminum aluminum aluminum aluminum
Volume resistivity Ω.cm
[ MIL G 83528 ] < 0.005 < 0.005 < 0.006 < 0.004 < 0.006 0.035 < 0.0016 < 0.0006 < 0,005 < 0.10 < 0.10 < 0.5 < 0.0054 < 0.0040 0.025 < 0.0029 < 0.015 2.8 2.7

Hardness shore A 82 40 73 69 75 55 69 75 75 65 65 70 65 30 48 71 70 70 73
[ ASTM D 2240 ]
Density g/cm 3
[ ASTM D 792 method A ] 3.40 2.67 3.90 3.64 3.90 - 3.80 4.30 3.70 2 2.30 1.88 1.90 1.67 - 2 2 1.16 1.23

Break resistance Mpa 2.80 0.81 1.79 1.78 4.61 1.30 2.64 3.3 3,00 1.37 1.30 1.73 1.89 1.02 0.58 1.85 1.70 6.8 6.3
[ ASTM D 412 method A C ]

Elongation at break %
[ ASTM D 412 method A C ] 250 250 250 283 355 48 380 158.5 290 150 200 300 286 260 50 260 470 210 177.6

Tear strength N/mm
[ ASTM D 624 C ] 13.44 3.89 8.92 13.83 13.73 5.93 Kn/m 16.28 14.4 9,50 8.73 6.08 4.70 8.43 2.01 5.93 Kn/m 7.36 12.00 13.5 21.7

Residual deformation after com-
29*
pression 70 hours at 100°C % [ 17.50 6.3 25.30 14.30 33.12 - 15.10 19 < 32 40 25 30 17.30 10.20 - 21 40 *RDC 22 hours 18
ASTM D 395 method B ]
at 175°C
-55 to
Working temperature °C -55 to +125 -55 to +125 -55 to +125 -55 to +125 -55 to +160 -55 to +160 -55 to +160 -55 to +160 -55 to + 125 -55 to +150 -55 to +150 -55 to +125 -55 to +160 -55 to +160 -55 to +160 -55 to +160 -45 to +160 -55 to +125
+125
Color Grey Grey Beige Grey Grey Light beige Red/pink Light beige Beige Grey Dark grey Dark grey Grey Grey Grey / Beige Blue/beige Light blue Grey Black Black

Shielding performance :
20 MHz 130 dB 66 dB 113 dB 113 dB 110 dB 118 dB 113 dB 125 dB 120 dB 100 dB 100 dB 90 dB 128 dB 78 dB 78 dB 105 dB 128 dB 60 dB 60 dB
100 MHz 140 dB 86 dB 144 dB 139 dB 110 dB 142 dB 147 dB 110 dB 126 dB 100 dB 100 dB 90 dB 137 dB 90 dB 90 dB 108 dB 137 dB 105 dB 60 dB
500 MHz 120 dB 100 dB 119 dB 120 dB 110 dB 119 dB 118 dB 110 dB 137 dB 100 dB 100 dB 90 dB 133 dB 104 dB 104 dB 110 dB 133 dB 105 dB 60 dB
2 GHz 120 dB 80 dB 128 dB 128 dB 110 dB 122 dB 128 dB 110 dB 132 dB 100 dB 100 dB 90 dB 122 dB 86 dB 86 dB 115 dB 122 dB 105 dB 60 dB
10 GHz 120 dB 87 dB 114 dB 114 dB 110 dB 110 dB 110 dB 110 dB 112 dB 100 dB 100 dB 90 dB 104 dB 106 dB 106 dB 91 dB 104 dB 105 dB 60 dB
[ MIL G 83528 ]

Available formats

Molded Extruded Cut Adhered by vulcanization Sheet All these mixtures can be available in a fire / toxicity retardant version (UL, FAR...), EN 45545.
All these products can be available in UL version on request.
