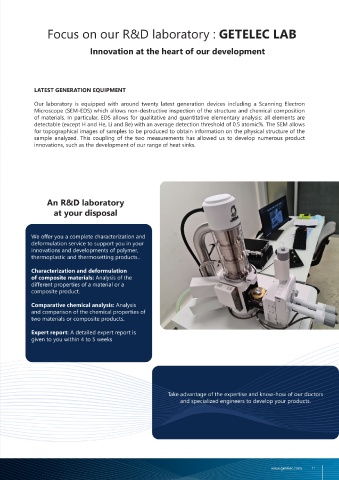

IP ingress protection ratings details Focus on our R&D laboratory : GETELEC LAB

Innovation at the heart of our development

The IP rating defines the level of protection associated with the ingress of solid foreign objects and the ingress of
water.
IP 45

LATEST GENERATION EQUIPMENT
1st digit : Protection against dust 2nd digit : Protection against water intrusion
Our laboratory is equipped with around twenty latest generation devices including a Scanning Electron
Microscope (SEM-EDS) which allows non-destructive inspection of the structure and chemical composition
of materials. In particular, EDS allows for qualitative and quantitative elementary analysis: all elements are
detectable (except H and He, Li and Be) with an average detection threshold of 0.5 atomic%. The SEM allows
for topographical images of samples to be produced to obtain information on the physical structure of the
1 digit (tens) 2 digit (unit) sample analyzed. This coupling of the two measurements has allowed us to develop numerous product
st
nd
Rating Protection against dust Protection against water intrusion innovations, such as the development of our range of heat sinks.
0 No protection No protection

Protected against solid objects
1 Protected against vertically falling drops of water.
greater than 50 mm.
Protected against solid objects
2 Protected against dripping water up to 15° from the vertical.
greater than 12.5 mm.
An R&D laboratory
Protected against solid objects
3 Protected against rain water up to 60° from the vertical. at your disposal
greater than 2.5 mm.
Protected against solid objects
4 Protected against splashes of water from all directions.
greater than 1 mm.
We offer you a complete characterization and
Protected against dust and other Protected against water jets from any direction (nozzle 6.3 mm, distance 2.5m deformulation service to support you in your
5 microscopic residues to 3m, flow rate 12.5 l/min ±5%). innovations and developments of polymer,
thermoplastic and thermosetting products..
Protected against strong water jets from any direction (nozzle 12.5 mm, distance
6 Totally protected against dust
2.5m to 3m, flow rate 100 l/min ±5% Characterization and deformulation
of composite materials: Analysis of the
Protected against the effects of temporary immersion (up to 1m). The ingress of different properties of a material or a
7 - water in harmful quantities will not be possible when the equipment is immersed composite product.
in water under defined pressure and time conditions (up to 1m submersion).
Comparative chemical analysis: Analysis
and comparison of the chemical properties of
Submersible material under specified conditions (prolonged immersion) beyond
1m and for 30 minutes. Normally, this means that the equipment is hermetically two materials or composite products.
8 - sealed. However, with certain types of equipment, this may mean that water can
ingress, but only provided that it does not produce adverse effects. Protection Expert report: A detailed expert report is
against submersion. given to you within 4 to 5 weeks

Submersible material under specified conditions (prolonged immersion) beyond
9 - 1m and protection against high-pressure cleaning. Normally, this means that
the equipment is hermetically sealed and can withstand high water pressure.

Protection against high-pressure cleaning, at high temperature and coming
9K -
from several directions. Take advantage of the expertise and know-how of our doctors
and specialized engineers to develop your products.
