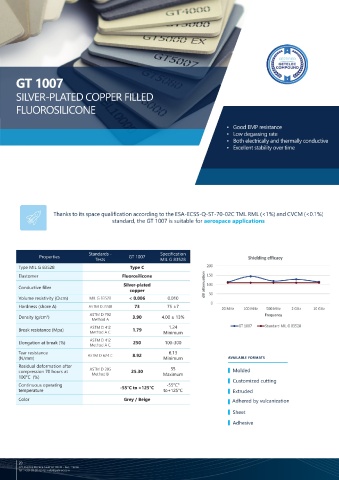

GT 1007 GT 1015

SILVER-PLATED COPPER FILLED SILVER-PLATED COPPER FILLED
FLUOROSILICONE SILICONE

• Good EMP resistance • Good EMP resistance
• Low degassing rate • Both electrically and thermally conductive
• Both electrically and thermally conductive • Excellent stability over time
• Excellent stability over time

Thanks to its space qualification according to the ESA-ECSS-Q-ST-70-02C TML RML (<1%) and CVCM (<0.1%)
standard, the GT 1007 is suitable for aerospace applications

Standards - GT 1015 Shielding efficacy
Properties
Properties Standards - GT 1007 Specification Tests
Tests MIL G 83528 Type MIL G 83528 Type A
Type MIL G 83528 Type C
Elastomer Silicone
Elastomer Fluorosilicone Silver-plated Attenuation dB
Silver-plated Conductive filler copper
Conductive filler
copper Volume resistivity (Ω.cm) < 0.004
Volume resistivity (Ω.cm) MIL G 83528 < 0.006 0.010 MIL G 83528
Hardness (shore A) ASTM D 2240 69
Hardness (shore A) ASTM D 2240 73 75 ±7
Density (g/cm ) ASTM D 792 3.64
3
Method A
Density (g/cm ) ASTM D 792 3.90 4.00 ± 13% ASTM D 412 Standard MIL G 83528
3
Method A
Break resistance (Mpa) ASTM D 412 1.79 1.24 Break resistance (Mpa) Method A C 1.78
Method A C Minimum ASTM D 412
Elongation at break (%) 283
Elongation at break (%) ASTM D 412 250 100-300 Tear resistance Method A C
Method A C
Tear resistance 6.13 (N/mm) ASTM D 624 C 13.83
(N/mm) ASTM D 624 C 8.92 Minimum available formats Residual deformation after compression ASTM D 395
Residual deformation after 35 70 hours at 100°C (%) Method B 14.30 available formats
compression 70 hours at ASTM D 395 25.30 Molded Continuous operating temperature -55°C to+125°C
100°C (%) Method B Maximum Customized cutting Molded
Continuous operating -55°C to +125°C -55°C° Color Grey Customized cutting
temperature to+125°C Extruded
Extruded
Color Grey / Beige Adhered by vulcanization
Adhered by vulcanization
Sheet
Sheet
Adhesive
Adhesive

20
