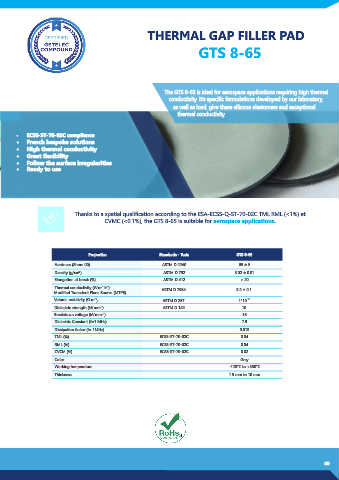

THERMAL GAP FILLER PAD

GTS 8-65

GTG 6-85 is ideal for applications requiring high thermal The GTS 8-65 is ideal for aerospace applications requiring high thermal
conductivity. It’s specific formulations developed by our conductivity. It’s specific formulations developed by our laboratory,
laboratory, as well as load, give these silicone elastomers and as well as load, give these silicone elastomers and exceptional
exceptional thermal conductivity. thermal conductivity.

• ECSS-ST-70-02C compliance
• French bespoke solutions
• High thermal conductivity
• Great flexibility
• Follow the surface irregularities
• Ready to use

Thanks to a spatial qualification according to the ESA-ECSS-Q-ST-70-02C TML RML (<1%) et
CVMC (<0.1%), the GTS 8-65 is suitable for aerospace applications.

Properties Standards - Tests GTS 8-65

Hardness (Shore 00) ASTM D 2240 65 ± 5
Density (g/cm ) 3 ASTM D 792 3.02 ± 0.01
Elongation at break (%) ASTM D 412 > 20
-1
-1
Thermal conductivity (W.m .K ) ASTM D 7984 8.2 ± 0.1
Modified Transcient Plane Source (MTPS)
Volume resistivity (Ω.m ) ASTM D 257 1*10 11
-1
Dielectric strength (kV.mm ) ASTM D 149 10
-1
Breakdown voltage (kV.mm ) 16
-1
Dielectric Constant (f=1 MHz) 7.9
Dissipation factor (f= 1MHz) 0.013
TML (%) ECSS-ST-70-02C 0.04
RML (%) ECSS-ST-70-02C 0.04
CVCM (%) ECSS-ST-70-02C 0.02
Color Grey
Working temperature -120°C to +300°C
Thickness 1.5 mm to 10 mm
