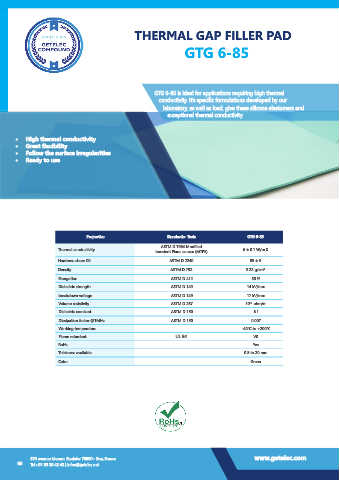

THERMAL GAP FILLER PAD
GTG 6-85
GTG 6-85 is ideal for applications requiring high thermal
conductivity. It’s specific formulations developed by our
laboratory, as well as load, give these silicone elastomers and
exceptional thermal conductivity.
• High thermal conductivity
• Great flexibility
• Follow the surface irregularities
• Ready to use
Properties Standards- Tests GTG 6-85
ASTM D 7984 Modified
Thermal conductivity transient Plane source (MTPS) 6 ± 0.1 W/m.K
Hardness shore 00 ASTM D 2240 85 ± 5
Density ASTM D 792 3.23 g/cm 3
Elongation ASTM D 412 50 %
Dielectric strength ASTM D 149 14 kV/mm
breakdown voltage ASTM D 149 17 kV/mm
Volume resistivity ASTM D 257 10 ohm/m
11
Dielectric constant ASTM D 150 8.1
Dissipation factor @1MHz ASTM D 150 0.007
Working temperature -40°C to +200°C
Flame retardant UL 94 V0
RoHs Yes
Thickness available 0.8 to 20 mm
Color Green
