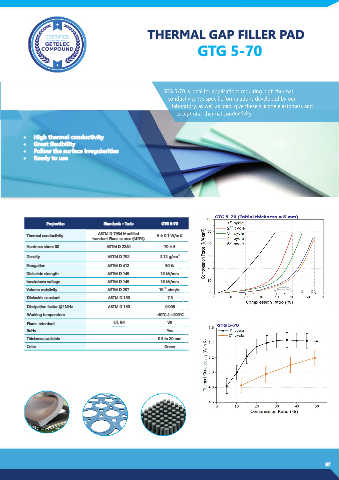

THERMAL GAP FILLER PAD
GTG 5-70
GTG 3-40 is ideal for applications requiring high thermal GTG 5-70 is ideal for applications requiring high thermal
conductivity. It’s specific formulations developed by our conductivity. It’s specific formulations developed by our
laboratory, as well as load, give these silicone elastomers and laboratory, as well as load, give these silicone elastomers and
exceptional thermal conductivity. exceptional thermal conductivity.
• High thermal conductivity
• Great flexibility
• Follow the surface irregularities
• Ready to use
Properties Standards - Tests GTG 5-70
Thermal conductivity ASTM D 7984 Modified 5 ± 0.1 W/m.K
transient Plane source (MTPS)
Hardness shore 00 ASTM D 2240 70 ± 5
Density ASTM D 792 3.12 g/cm 3
Elongation ASTM D 412 50 %
Dielectric strength ASTM D 149 15 kV/mm
breakdown voltage ASTM D 149 18 kV/mm
Volume resistivity ASTM D 257 10 ohm/m
11
Dielectric constant ASTM D 150 7.5
Dissipation factor @1MHz ASTM D 150 0.006
Working temperature -40°C à +200°C
Flame retardant UL 94 V0
RoHs Yes
Thickness available 0.5 to 20 mm
Color Green
