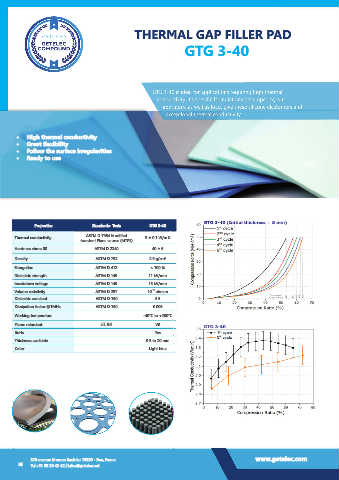

THERMAL GAP FILLER PAD
GTG 3-40
GTG 3-40 is ideal for applications requiring high thermal
conductivity. It’s specific formulations developed by our
laboratory, as well as load, give these silicone elastomers and
exceptional thermal conductivity.
• High thermal conductivity
• Great flexibility
• Follow the surface irregularities
• Ready to use
Properties Standards- Tests GTG 3-40
ASTM D 7984 Modified
Thermal conductivity 3 ± 0.1 W/m.K
transient Plane source (MTPS)
Hardness shore 00 ASTM D 2240 40 ± 5
Density ASTM D 792 2.9 g/cm 3
Elongation ASTM D 412 < 100 %
Dielectric strength ASTM D 149 11 kV/mm
breakdown voltage ASTM D 149 15 kV/mm
Volume resistivity ASTM D 257 10 ohm.m
11
Dielectric constant ASTM D 150 5.5
Dissipation factor @1MHz ASTM D 150 0.005
Working temperature -40°C to +200°C
Flame retardant UL 94 V0
RoHs Yes
Thickness available 0.5 to 20 mm
Color Light blue
