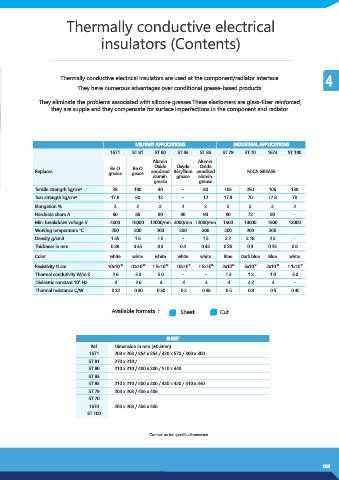

Thermally conductive electrical

insulators (Contents)

GT 907 is an RTV polyaddition silicone elastomer, fluid and curing at room Thermally conductive electrical insulators are used at the component/radiator interface.
temperature with no solvent requirements. When vulcanised it has 4
good thermal conductivity and flame-resistance (UL 94 V0). They have numerous advantages over conditional grease-based products.

They eliminate the problems associated with silicone greases.These elastomers are glass-fiber reinforced,
they are supple and they compensate for surface imperfections in the component and radiator.

MILITARY APPLICATIONS INDUSTRIAL APPLICATIONS
1671 ST 81 ST 80 ST 83 ST 85 ST 79 ST 70 1674 ST 100
Alumin. Alumin.
Be O Be O Oxide Oxyde Oxide
Replaces anodised Béryllium anodised MICA GREASE
grease gease alumin. grease alumin.
grease grease
Tensile strength kg/cm² 28 100 30 - 30 105 250 105 130
Tear strength kg/cm² 17.8 50 12 - 12 17.8 70 17.8 70
Elongation % 2 2 2 2 2 2 2 2 2
Hardness shore A 90 85 90 90 90 90 72 90 -
Min. breakdown voltage V 4000 16000 12000/mn 4000/mn 12000/mn 1500 10000 1500 12000
Working temperature °C 200 200 200 200 200 200 200 200
Density g/cm3 1.55 1.5 1.5 - 1.5 2.2 2.18 2.2 -
Thickness in mm 0.38 0.45 0.3 0.4 0.45 0.25 0.3 0.25 0.8

Color white white white white white Blue Dark blue Blue white
Resistivity Ω.cm 10x10 14 10x10 14 1.5x10 14 10x10 13 1.5x10 14 2x10 14 5x10 13 2x10 14 1.1x10 15
Thermal condutivity W/m.K 2.6 5.0 5.0 - - 1.3 1.2 1.0 5.0
Dielectric constant 10 Hz 4 2.6 4 4 4 4 4.2 4 -
6
Thermal resistance C/W 0.22 0.30 0.30 0.2 0.38 0.5 0.8 0.5 0.40

Available formats : Sheet Cut

SHEET
Ref. Dimension in mm (±0.3mm)
1671 203 x 203 / 254 x 254 / 420 x 570 / 300 x 300
ST 81 270 x 210 /
ST 80 210 x 210 / 400 x 200 / 510 x 440
ST 83
ST 85 210 x 210 / 400 x 200 / 420 x 420 / 510 x 440
ST 79 203 x 203 / 406 x 406
ST 70
1674 203 x 203 / 406 x 406
ST 100

Contact us for specific dimensions.
