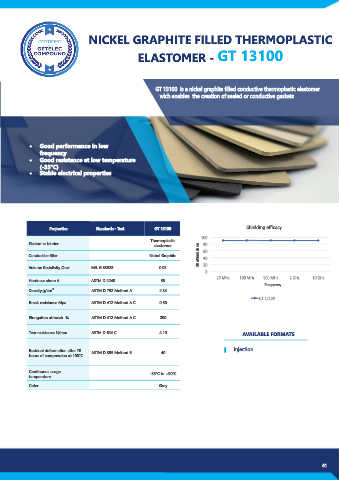

NICKEL GRAPHITE FILLED THERMOPLASTIC

ELASTOMER - GT 13100

BL 10007 is a conductive carbon filled fluorosilicone elastomer GT 13100 is a nickel graphite filled conductive thermoplastic elastomer
which enables the creation of sealed, conductive gaskets . wich enables the creation of sealed or conductive gaskets.
Can be allow in contact with solvents, hydrocarbons or hydraulic fluids.

• Good performance in low
frequency
• Good resistance at low temperature
(-35°C)
• Stable electrical properties

Properties Standards - Test GT 13100 Shielding efficacy
160
Thermoplastic 140
Elastomer binder
elastomer 120
Conductive filler Nickel Graphite dB attenuation 100
80
Volume Resistivity Ω.cm MIL G 83528 0.03 60
40
Hardness shore A ASTM D 2240 55 20
Frequency
Density g/cm 3 ASTM D 792 Method A 2.34 0
20 MHz 100 MHz 500 MHz 2 GHz1 0 GHz
Break resistance Mpa ASTM D 412 Method A C 0.50 GT2020

Elongation at break % ASTM D 412 Method A C 200

Tear resistance N/mm ASTM D 624 C 4.10
AVAILABLE FORMATS

Residual deformation after 70 ASTM D 395 Method B 40 Injection
hours of compression at 100°C

Continuous usage
temperature -35°C to +90°C
Color Grey
