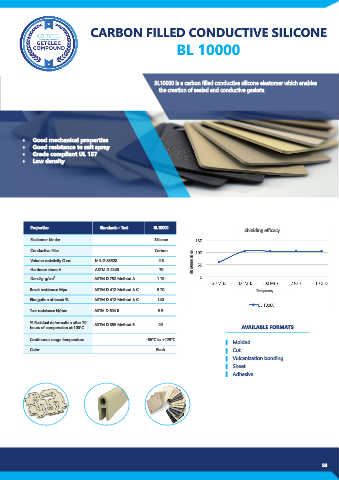

CARBON FILLED CONDUCTIVE SILICONE
BL 10000
GT 5200 is a conductive silver-plated aluminum filled EPDM elastomer BL10000 is a carbon filled conductive silicone elastomer which enables
which enables the creation of sealed, conductive gaskets. the creation of sealed and conductive gaskets.
• Good mechanical properties
• Good resistance to salt spray
• Grade compliant UL 157
• Low density
Properties Standards - Test BL10000
Shielding efficacy
Elastomer binder Silicone 160
Conductive filler Carbon 140
120
dB attenuation dB attenuation
Volume resistivity Ω.cm MIL G 83528 2.8 100
Hardness shore A ASTM D 2240 70 80
60
Density g/cm 3 ASTM D 792 Method A 1.19 40
Break resistance Mpa ASTM D 412 Method A C 5.70 20 Frequency
0
Elongation at break % ASTM D 412 Method A C 140 20 MHz 100 MHz 500 MHz 2 GHz1 0 GHz
Tear resistance N/mm ASTM D 624 B 9.9
% Residual deformation after 70 ASTM D 395 Method B 29
hours of compression at 100°C AVAILABLE FORMATS
Continuous range temperature -55°C to +125°C
Molded
Color Black Cut
Vulcanization bonding
Sheet
Adhesive
