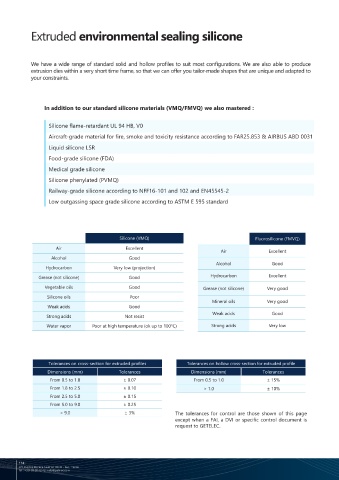

Extruded environmental sealing silicone Our standard profiles

We have a wide range of standard solid and hollow profiles to suit most configurations. We are also able to produce
extrusion dies within a very short time frame, so that we can offer you tailor-made shapes that are unique and adapted to
your constraints.

In addition to our standard silicone materials (VMQ/FMVQ) we also mastered :

Silicone flame-retardant UL 94 HB, V0
Aircraft-grade material for fire, smoke and toxicity resistance according to FAR25.853 & AIRBUS ABD 0031

Liquid silicone LSR
Food-grade silicone (FDA) Solid round profile Hollow round profile Solid D profile
Ø 0.5 to 10 mm Ø 1 to 20 mm Width 1.60 to 6 mm
Medical grade silicone

Silicone phenylated (PVMQ)
Railway-grade silicone according to NFF16-101 and 102 and EN45545-2
Low outgassing space grade silicone according to ASTM E 595 standard

Hollow D profile Solid rectangular profile Hollow rectangular profile
Silicone (VMQ) Fluorosilicone (FMVQ) Width 3.92 to 15 mm Width 1 to 4 mm Width 3.80 to 12 mm
Air Excellent
Air Excellent
Alcohol Good
Alcohol Good
Hydrocarbon Very low (projection)
Grease (not silicone) Good Hydrocarbon Excellent
Vegetable oils Good Grease (not silicone) Very good
Silicone oils Poor
Mineral oils Very good
Weak acids Good A profile U profile
Weak acids Good Hollow square profile
Strong acids Not resist Ø 0.50 to 2.30 mm 0.66 to 5 mm
Ø 1.20 to 2.50 mm
Water vapor Poor at high temperature (ok up to 100°C) Strong acids Very low

Tolerances on cross-section for extruded profiles Tolerances on hollow cross-section for extruded profile P profile Discover all technical data on our website :
Dimensions (mm) Tolerances Dimensions (mm) Tolerances Ø 3.50 to 11 mm
From 0.5 to 1.8 ± 0.07 From 0.5 to 1.0 ± 15%
From 1.8 to 2.5 ± 0.10 > 1.0 ± 10% P Profile
From 2.5 to 5.0 ± 0.15 Ø 3.50 to 11 mm
From 5.0 to 9.0 ± 0.25
> 9.0 ± 3% The tolerances for control are those shown of this page
except when a FAI, a DVI or specific control document is
request to GETELEC.
