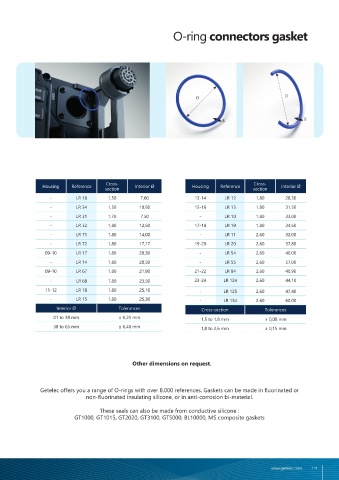

D SUB connector gasket O-ring connectors gasket

SUB D connector joints are used to connect drawer racks and miniature frame cables.

This type of joint is used in numerous applications in the following fields:
telecom, medical, IT, military and aerospace.
D
GETELEC offers these joints in standard sizes ranging from 9 to 50 contacts. D
These gaskets can also be produced to your specific requirements..

B B

E

2 x ØD B
F Cross- Cross-
Housing Reference section Interior Ø Housing Reference section Interior Ø

- LR 16 1,50 7,60 13-14 LR 12 1,80 28,30
- LR 34 1,50 10,50 15-16 LR 13 1,80 31,50
- LR 31 1,70 7,50 - LR 10 1,80 33,00
C - LR 32 1,80 12,50 17-18 LR 19 1,80 34,60

- LR 71 1,80 14,00 - LR 11 2,60 32,00
A
- LR 72 1,80 17,17 19-20 LR 20 2,60 37,80
09-10 LR 17 1,80 20,30 - LR 54 2,60 40,00
- LR 14 1,80 20,50 - LR 55 2,60 57,00
09-10 LR 67 1,80 21,90 21-22 LR 84 2,60 40,90
Housing Getelec A (mm)± B (mm)± C (mm)± D (mm)± E (mm)± F (mm)± Cutting edge
Sizes reference 0.38 0.38 0.25 0.25 0.38 0.25 - LR 68 1,80 23,50 23-24 LR 124 2,60 44,10
9 contacts H 127 30,81 15,09 25,00 3,05 17,70 9,14 10° 11-12 LR 18 1,80 25,10 - LR 125 2,60 47,40
- LR 15 1,80 25,30 - LR 134 2,60 60,00
15 contacts H 128 39,52 15,24 33,32 3,30 27,43 9,40 10°
Interior Ø Tolerances Cross-section Tolerances
25 contacts H 129 53,01 15,09 47,04 3,05 40,21 9,60 10°
01 to 38 mm ± 0,25 mm 1,5 to 1,8 mm ± 0,08 mm
37 contacts D 165 69,32 15,09 63,50 3,05 56,67 9,60 10°
38 to 65 mm ± 0,40 mm 1,8 to 2,6 mm ± 0,15 mm
50 contacts D 166 66,93 15,37 61,11 3,05 53,57 11,84 10°

All these dimensions are in millimeters.
MICRO-D connector seals available on request. Other dimensions on request.

Technical sealing gaskets can be made in fluorinated or non-fluorinated silicone or in conductive anti-corrosion bi-material. Getelec offers you a range of O-rings with over 8,000 references. Gaskets can be made in fluorinated or
non-fluorinated insulating silicone, or in anti-corrosion bi-material.
These gaskets can also be made of conductive silicone:
GT1000, GT1015, GT2020, GT3100, GT5000, BL10000, MS composite gaskets These seals can also be made from conductive silicone :
GT1000, GT1015, GT2020, GT3100, GT5000, BL10000, MS composite gaskets
