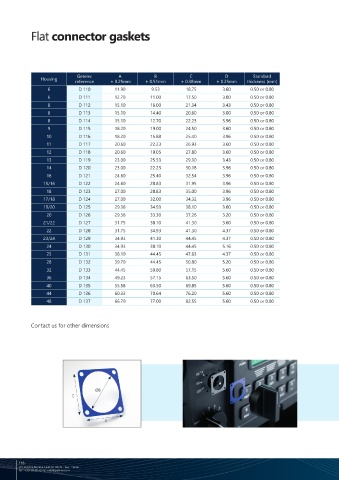

Flat connector gaskets Getelec reference ± 0.25mm ± 0.51mm ± 0.38mm ± 0.25mm thickness (mm)
B
A
Standard
D
C
G 21 8.60 7.70 12.90 2.40 0.50 or 0.80
J 61 12.70 11.00 17.50 3.00 0.50 or 0.80
S 122 12.70 11.20 18.00 3.20 0.50 or 0.80
Getelec A B C D Standard A 57 15.10 14.40 20.60 3.00 0.50 or 0.80
Housing
reference ± 0.25mm ± 0.51mm ± 0.38mm ± 0.25mm thickness (mm) B 76 15.1 14.40 20.60 3.00 0.50 or 0.80
6 D 110 11.90 9.53 18.75 3.60 0.50 or 0.80
H 13 15.10 14.30 21.00 3.30 0.50 or 0.80
6 D 111 12.70 11.00 17.50 3.00 0.50 or 0.80
K 177 18.00 14.80 24.00 3.50 0.50 or 0.80
8 D 112 15.10 16.00 21.34 3.43 0.50 or 0.80
8 D 113 15.10 14.40 20.60 3.00 0.50 or 0.80 H 194 18.00 11.30 24.00 3.50 0.50 or 0.80
8 D 114 15.10 12.70 22.23 3.96 0.50 or 0.80 F 86 18.20 17.50 24.00 3.50 0.50 or 0.80
9 D 115 18.20 19.00 24.50 3.60 0.50 or 0.80 Z 30 18.20 15.50 24.00 3.20 0.50 or 0.80
10 D 116 18.20 15.88 25.40 3.96 0.50 or 0.80 K 34 18.25 19.00 24.50 3.50 0.50 or 0.80
11 D 117 20.60 22.23 26.93 3.60 0.50 or 0.80 H 15 18.30 18.40 24.40 3.30 0.50 or 0.80
12 D 118 20.60 19.05 27.80 3.60 0.50 or 0.80 A 256 20.60 18.00 28.00 3.20 0.50 or 0.80
13 D 119 23.00 25.53 29.30 3.43 0.50 or 0.80 C 86 20.60 19.05 26.20 3.10 0.50 or 0.80
14 D 120 23.00 22.23 30.18 3.96 0.50 or 0.80 H 64 20.60 22.20 26.90 3.50 0.50 or 0.80
16 D 121 24.60 25.40 32.54 3.96 0.50 or 0.80 H 14 20.60 23.20 27.00 3.30 0.50 or 0.80
15/16 D 122 24.60 28.83 31.95 3.96 0.50 or 0.80 R 3 20.60 23.50 30.00 3.50 0.50 or 0.80
18 D 123 27.00 28.83 35.00 3.96 0.50 or 0.80
Z 31 20.60 19.50 26.50 3.20 0.50 or 0.80
17/18 D 124 27.00 32.00 34.32 3.96 0.50 or 0.80 J 151 21.00 19.50 27.00 3.50 0.50 or 0.80
19/20 D 125 29.36 34.93 38.10 3.60 0.50 or 0.80 23.00 28.60 3.00
20 D 126 29.36 33.30 37.26 3.20 0.50 or 0.80 C 84 23.00 0.50 or 0.80
21/22 D 127 31.75 38.10 41.30 3.60 0.50 or 0.80 B 6 24.60 24.00 33.00 3.20 0.50 or 0.80
J 193 24.60 28.60 32.00 3.60 0.50 or 0.80
22 D 128 31.75 34.93 41.30 4.37 0.50 or 0.80
23/24 D 129 34.93 41.30 44.45 4.37 0.50 or 0.80 Z 32 24.60 26.00 32.00 3.20 0.50 or 0.80
24 D 130 34.93 38.10 44.45 5.16 0.50 or 0.80 K 178 25.00 31.00 25.40 3.50 0.50 or 0.80
25 D 131 38.10 44.45 47.63 4.37 0.50 or 0.80 D 30 26.20 25.10 35.00 3.50 0.50 or 0.80
28 D 132 39.70 44.45 50.80 5.20 0.50 or 0.80 E 104 27.00 32.00 34.30 4.00 0.50 or 0.80
32 D 133 44.45 50.80 57.15 5.60 0.50 or 0.80 F 99 27.00 30.90 33.50 3.30 0.50 or 0.80
36 D 134 49.23 57.15 63.50 5.60 0.50 or 0.80 N 32 27.00 30.00 33.00 3.20 0.50 or 0.80
40 D 135 55.58 63.50 69.85 5.60 0.50 or 0.80 S 123 28.20 31.75 36.50 3.00 0.50 or 0.80
44 D 136 60.33 70.64 76.20 5.60 0.50 or 0.80
W 195 31.00 30.50 40.00 4.50 0.50 or 0.80
48 D 137 66.70 77.00 82.55 5.60 0.50 or 0.80
S 124 30.50 35.00 39.70 3.00 0.50 or 0.80
N 33 31.70 36.00 40.00 3.20 0.50 or 0.80
B 187 31.75 32.10 41.30 3.60 0.50 or 0.80
Contact us for other dimensions
K 179 33.00 30.50 42.00 5.50 0.50 or 0.80
S 125 34.90 38.00 42.90 3.00 0.50 or 0.80
N 34 35.00 39.20 43.00 3.20 0.50 or 0.80
J 142 42.00 36.00 49.00 4.00 0.50 or 0.80

Contact us for other dimensions
ØB
C
Technical sealing gaskets can be made of fluorinated or non-fluorinated silicone or
in conductive anti-corrosion bi-material.

A These gaskets can also be made of conductive silicone:
GT1000, GT1015, GT2020, GT3100, GT5000, BL10000, MS composite gaskets
