P. 118

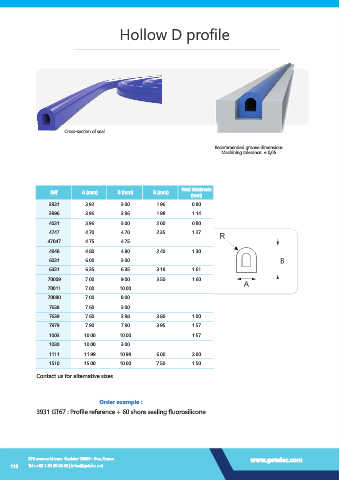

Hollow D profile
Cross-section of seal
Recommended groove dimensions
Machining tolerance: ± 0,05
Wall thickness
Réf. A (mm) B (mm) R (mm) (mm)
3931 3.92 3.00 1.96 0.80
3996 3.96 3.96 1.98 1.14
4031 3.96 3.00 2.00 0.80
4747 4.70 4.70 2.35 1.27
47047 4.75 4.75
4948 4.80 4.80 2.40 1.30
6031 6.00 3.00
6331 6.35 6.35 3.18 1.61
70009 7.00 9.00 3.50 1.60
70011 7.00 10.00
70080 7.00 8.00
7638 7.60 3.00
7639 7.60 3.98 3.80 1.00
7979 7.90 7.90 3.95 1.57
1003 10.00 10.00 1.57
1030 10.00 3.00
1111 11.99 10.99 6.00 2.00
1510 15.00 10.00 7.50 1.50
Contact us for alternative sizes
Order example :
3931 GT67 : Profile reference + 60 shore sealing fluorosilicone
