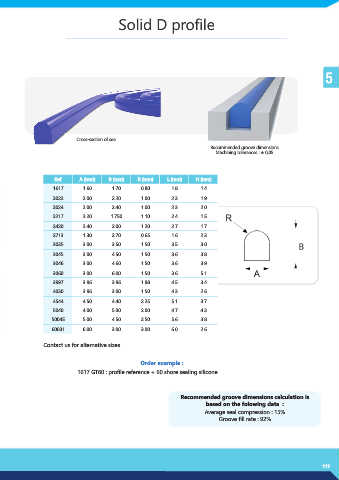

Solid D profile

5

Cross-section of seal
Recommended groove dimensions
Machining tolerances : ± 0,05

Ref. A (mm) B (mm) R (mm) L (mm) H (mm)
1617 1.60 1.70 0.80 1.8 1.4
2022 2.00 2.20 1.00 2.3 1.9
2024 2.00 2.40 1.00 2.3 2.0
2217 2.20 1.750 1.10 2.4 1.5
2420 2.40 2.00 1.20 2.7 1.7
2713 1.30 2.70 0.65 1.6 2.3
3035 3.00 3.50 1.50 3.5 3.0
3045 3.00 4.50 1.50 3.6 3.8
3046 3.00 4.60 1.50 3.6 3.9
3060 3.00 6.00 1.50 3.6 5.1
3997 3.96 3.96 1.98 4.5 3.4
4030 3.96 3.00 1.50 4.3 2.6
4544 4.50 4.40 2.25 5.1 3.7
5040 4.00 5.00 2.00 4.7 4.3
50045 5.00 4.50 2.50 5.6 3.8
60031 6.00 3.00 3.00 6.0 2.6

Contact us for alternative sizes.

Order example :
1617 GT60 : profile reference + 60 shore sealing silicone

Recommended groove dimensions calculation is
based on the folowing data :
Average seal compression : 15%
Groove fill rate : 92%
