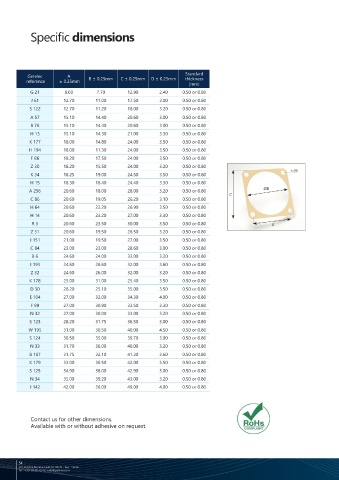

Specific dimensions Connector O-ring gaskets

Getelec A Standard
reference ± 0.25mm B ± 0.25mm C ± 0.25mm D ± 0.25mm thickness
(mm)
G 21 8.60 7.70 12.90 2.40 0.50 or 0.80 B
D
J 61 12.70 11.00 17.50 3.00 0.50 or 0.80 D
S 122 12.70 11.20 18.00 3.20 0.50 or 0.80 B
A 57 15.10 14.40 20.60 3.00 0.50 or 0.80
B 76 15.10 14.40 20.60 3.00 0.50 or 0.80
H 13 15.10 14.30 21.00 3.30 0.50 or 0.80
K 177 18.00 14.80 24.00 3.50 0.50 or 0.80
H 194 18.00 11.30 24.00 3.50 0.50 or 0.80
F 86 18.20 17.50 24.00 3.50 0.50 or 0.80
Z 30 18.20 15.50 24.00 3.20 0.50 or 0.80
4xØD
K 34 18.25 19.00 24.50 3.50 0.50 or 0.80
H 15 18.30 18.40 24.40 3.30 0.50 or 0.80 Material available for realization: GT1000, GT1015, GT2020, GT3100, GT5000, BL10000
A 256 20.60 18.00 28.00 3.20 0.50 or 0.80 C ØB These gaskets can also be made in sealing fluorosilicone or not, or, in corrosion-resistant
C 86 20.60 19.05 26.20 3.10 0.50 or 0.80 bi-material.
H 64 20.60 22.20 26.90 3.50 0.50 or 0.80
H 14 20.60 23.20 27.00 3.30 0.50 or 0.80
R 3 20.60 23.50 30.00 3.50 0.50 or 0.80 A
Z 31 20.60 19.50 26.50 3.20 0.50 or 0.80
J 151 21.00 19.50 27.00 3.50 0.50 or 0.80
C 84 23.00 23.00 28.60 3.00 0.50 or 0.80
B 6 24.60 24.00 33.00 3.20 0.50 or 0.80
J 193 24.60 28.60 32.00 3.60 0.50 or 0.80 Housing Reference Cross-section Ø Interior Housing Reference Cross-section Ø Interior
Z 32 24.60 26.00 32.00 3.20 0.50 or 0.80 - LR 16 1,50 7,60 13-14 LR 12 1,80 28,30
K 178 25.00 31.00 25.40 3.50 0.50 or 0.80 - LR 34 1,50 10,50 15-16 LR 13 1,80 31,50
D 30 26.20 25.10 35.00 3.50 0.50 or 0.80
- LR 31 1,70 7,50 - LR 10 1,80 33,00
E 104 27.00 32.00 34.30 4.00 0.50 or 0.80
- LR 32 1,80 12,50 17-18 LR 19 1,80 34,60
F 99 27.00 30.90 33.50 3.30 0.50 or 0.80
- LR 71 1,80 14,00 - LR 11 2,60 32,00
N 32 27.00 30.00 33.00 3.20 0.50 or 0.80
S 123 28.20 31.75 36.50 3.00 0.50 or 0.80 - LR 72 1,80 17,17 19-20 LR 20 2,60 37,80
W 195 31.00 30.50 40.00 4.50 0.50 or 0.80 09-10 LR 17 1,80 20,30 - LR 54 2,60 40,00
S 124 30.50 35.00 39.70 3.00 0.50 or 0.80 - LR 14 1,80 20,50 - LR 55 2,60 57,00
N 33 31.70 36.00 40.00 3.20 0.50 or 0.80 09-10 LR 67 1,80 21,90 21-22 LR 84 2,60 40,90
B 187 31.75 32.10 41.30 3.60 0.50 or 0.80 - LR 68 1,80 23,50 23-24 LR 124 2,60 44,10
K 179 33.00 30.50 42.00 5.50 0.50 or 0.80
11-12 LR 18 1,80 25,10 - LR 125 2,60 47,40
S 125 34.90 38.00 42.90 3.00 0.50 or 0.80
- LR 15 1,80 25,30 - LR 134 2,60 60,00
N 34 35.00 39.20 43.00 3.20 0.50 or 0.80
Ø interior Tolerances Cross-section Tolerances
J 142 42.00 36.00 49.00 4.00 0.50 or 0.80
01 to 38 mm ± 0,25 mm 1,5 to 1,8 mm ± 0,08 mm
38 to 65 mm ± 0,40 mm 1,8 to 2,6 mm ± 0,15 mm

Contact us for other dimensions.
Available with or without adhesive on request. Other dimensions on request

54
