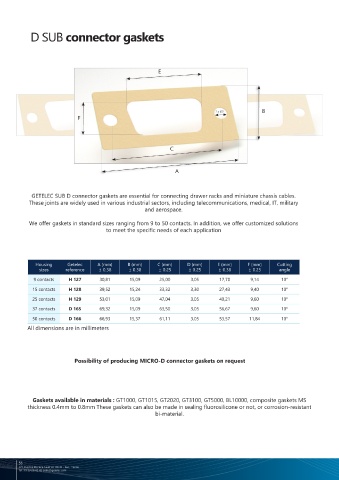

D SUB connector gaskets OVERMOLDING &

AUTOMATIC REMOVAL

E

SOLUTIONS

B
2 x ØD
F

C

A

GETELEC SUB D connector gaskets are essential for connecting drawer racks and miniature chassis cables.
These joints are widely used in various industrial sectors, including telecommunications, medical, IT, military
and aerospace.

We offer gaskets in standard sizes ranging from 9 to 50 contacts. In addition, we offer customized solutions
to meet the specific needs of each application

Housing Getelec A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Cutting
sizes reference ± 0.38 ± 0.38 ± 0.25 ± 0.25 ± 0.38 ± 0.25 angle
9 contacts H 127 30,81 15,09 25,00 3,05 17,70 9,14 10°

15 contacts H 128 39,52 15,24 33,32 3,30 27,43 9,40 10°
25 contacts H 129 53,01 15,09 47,04 3,05 40,21 9,60 10°
37 contacts D 165 69,32 15,09 63,50 3,05 56,67 9,60 10°
50 contacts D 166 66,93 15,37 61,11 3,05 53,57 11,84 10°
All dimensions are in millimeters

Possibility of producing MICRO-D connector gaskets on request

Gaskets available in materials : GT1000, GT1015, GT2020, GT3100, GT5000, BL10000, composite gaskets MS
thickness 0.4mm to 0.8mm These gaskets can also be made in sealing fluorosilicone or not, or corrosion-resistant
bi-material.
