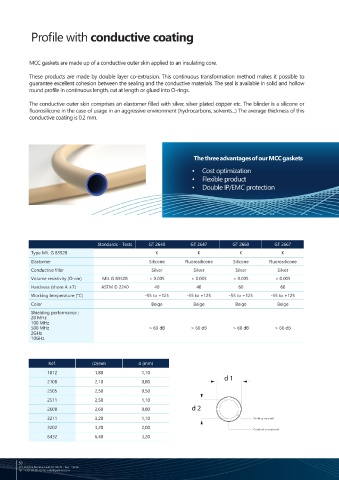

Profile with conductive coating Profiles for electronic cabinets

MCC gaskets are made up of a conductive outer skin applied to an insulating core.

These products are made by double layer co-extrusion. This continuous transformation method makes it possible to
guarantee excellent cohesion between the sealing and the conductive materials. The seal is available in solid and hollow E : 13.6
round profile in continuous length, cut at length or glued into O-rings. H : 16.1

The conductive outer skin comprises an elastomer filled with silver, silver plated copper etc. The blinder is a silicone or ADHESIVE ADHESIVE C : 2.5
fluorosilicone in the case of usage in an aggressive environment (hydrocarbons, solvents...) The average thickness of this
conductive coating is 0.2 mm. B : 14.7
C : 9 Réf. 1371 Réf. 1517

The three advantages of our MCC gaskets
• Cost optimization
• Flexible product
• Double IP/EMC protection

Conducteur Isolant
CONDUCTIVE PART
SEALING PART
5,4
R: 1,6
R: 0,3 H : 16.6
8 8,8 10,7 11,5 5.2
5,5
2,7 3.1
Standards - Tests GT 2640 GT 2647 GT 2660 GT 2667 1,6 R: 0,3 ADHESIVE
2,2 B : 16
Type MIL G 83528 K K K K Réf. 1616
7 Réf. 1539
Elastomer Silicone Fluorosilicone Silicone Fluorosilicone
Conductive filler Silver Silver Silver Silver
Volume resistivity (Ω-cm) MIL G 83528 < 0.005 < 0.005 < 0.005 < 0.005
Hardness (shore A ±7) ASTM D 2240 40 40 60 60
Working temperature (°C) -55 to +125 -55 to +125 -55 to +125 -55 to +125
Color Beige Beige Beige Beige
Shielding performance :
20 MHz
100 MHz
500 MHz > 60 dB > 60 dB > 60 dB > 60 dB
2GHz
10GHz C: 65
H : 7.6

H: 7,5 R: 3
Ref. (D)mm d (mm)
1812 1,80 1,10 ADHESIVE ADHESIVE C : 1
R: 3 L: 5,6
2108 2,10 0,80
B: 11 B : 15
2505 2,50 0,50
Réf. 7511 Réf. 16013 Réf. A903
2511 2,50 1,10
2608 2,60 0,80
3211 3,20 1,10 Sealing material
3202 3,20 2,00 Conductive material
6432 6,40 3,20

50
