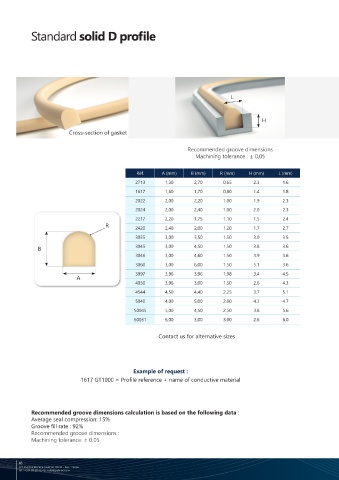

Standard solid D profile Standard hollow D profile

L

H
Cross-section of gasket Cross-section of gasket

Recommended groove dimensions
Machining tolerance : ± 0,05

Réf. A (mm) B (mm) R (mm) H (mm) L (mm)
Réf. A (mm) B (mm) R (mm) Épaisseur paroi
2713 1,30 2,70 0,65 2.3 1.6 (mm)
1617 1,60 1,70 0,80 1.4 1.8 3931 3,92 3,00 1.96 0.80
2022 2,00 2,20 1,00 1.9 2.3 3996 3,96 3,96 1.98 1.14
2024 2,00 2,40 1,00 2.0 2.3 4031 3,96 3,00 2.00 0.80
2217 2,20 1,75 1,10 1.5 2.4 4747 4,70 4,70 2.35 1.27
R 2420 2,40 2,00 1,20 1.7 2.7 47047 4,75 4,75 R

3035 3,00 3,50 1,50 3.0 3.5 4948 4,80 4,80 2.40 1.30

B 3045 3,00 4,50 1,50 3.8 3.6 6031 6,00 3,00 B
3046 3,00 4,60 1,50 3.9 3.6 6331 6,35 6,35 3.18 1.61
3060 3,00 6,00 1,50 5.1 3.6 70009 7,00 9,00 3.50 1.60
3997 3,96 3,96 1,98 3.4 4.5 70011 7,00 10,00
A
4030 3,96 3,00 1,50 2.6 4.3 70080 7,00 8,00 A
4544 4,50 4,40 2,25 3.7 5.1 7638 7,60 3,00
5040 4,00 5,00 2,00 4.3 4.7 7639 7,60 3,98 3.80 1.00
50045 5,00 4,50 2,50 3.8 5.6 7979 7,90 7,90 3.95 1.57
60031 6,00 3,00 3,00 2.6 6.0 1003 10,00 10,00 1.57
1030 10,00 3,00
Contact us for alternative sizes 1111 11,99 10,99 6.00 2.00
1510 15,00 10,00 7.50 1.50

Contact us for alternative sizes
Example of request :
1617 GT1000 = Profile reference + name of conductive material

Example of request :

Recommended groove dimensions calculation is based on the following data : 3931 GT1000 = Profile reference + name of conductive material
Average seal compression: 15%
Groove fill rate : 92%
Recommended groove dimensions :
Machining tolerance: ± 0,05
