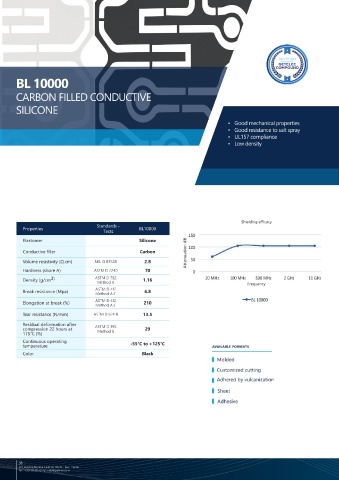

BL 10000 BL 10007

CARBON FILLED CONDUCTIVE CARBON FILLED CONDUCTIVE
SILICONE FLUOROSILICONE

• Good mechanical properties • Good mechanical properties
• Good resistance to salt spray • Good abrasion resistance
• UL157 compliance • UL157 compliance
• Low density • Low density

Shielding efficacy
Standards - Standards -
Properties Tests BL10000 Properties Tests BL10007 Shielding efficacy
160
Elastomer Silicone 140 Type MIL G 83528 -
120 Elastomer Carbon
Conductive filler Carbon
100 Conductive filler Fluorosilicone
Volume resistivity (Ω.cm) MIL G 83528 2.8 80 Volume resistivity (Ω.cm) MIL G 83528 2.7
Hardness (shore A) ASTM D 2240 70 60
40 Hardness (shore A) ASTM D 2240 73
Density (g/cm 3) ASTM D 792 1.16 20 Frequency Density (g/cm ) ASTM D 792 1.23 Frequency
Method A
3
Method A
Break resistance (Mpa) ASTM D 412 6.8 0 20 MHz 100 MHz 500 MHz 2 GHz1 0 GHz Break resistance (Mpa) ASTM D 412 6.3
Method A C
Method A C
Elongation at break (%) ASTM D 412 210 Elongation at break (%) ASTM D 412 177.6
Method A C
Method A C
Tear resistance (N/mm) ASTM D 624 B 13.5 Tear resistance (N/mm) ASTM D 624 C 21.7
Residual deformation after Residual deformation after
compression 22 hours at ASTM D 395 29 compression 70 hours at 100°C ASTM D 395 18
175°C (%) Method B (%) Method B
Continuous operating -55°C to +125°C Continuous operating -55°C to
temperature available formats temperature +125°C available formats
Color Black Color Black
Molded Molded
Customized cutting Customized cutting
Adhered by vulcanization Extruded

Sheet Adhered by vulcanization
Adhesive Sheet

Adhesive
