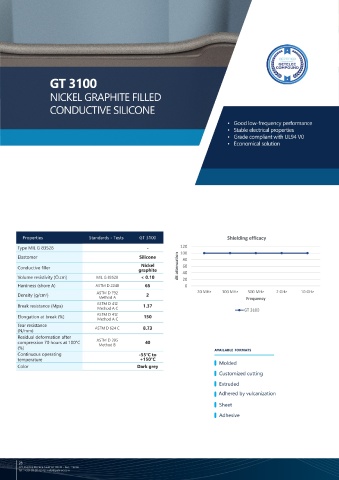

GT 3100 GT 3107

NICKEL GRAPHITE FILLED NICKEL GRAPHITE FILLED
CONDUCTIVE SILICONE CONDUCTIVE FLUOROSILICONE

• Good low-frequency performance • Good low-frequency performance
• Stable electrical properties • Stable electrical properties
• Grade compliant with UL94 V0 • Grade compliant with UL94 V0
• Economical solution • Economical solution
• Excellent resistance to oils and
hydrocarbons

Properties Standards - Tests GT 3107

Type MIL G 83528 -
Properties Standards - Tests GT 3100 Elastomer Fluorosilicone

Type MIL G 83528 - Conductive filler Nickel graphite
Elastomer Silicone Volume resistivity (Ω.cm) MIL G 83528 < 0.10
Nickel
Conductive filler graphite Hardness (shore A) ASTM D 2240 65
Volume resistivity (Ω.cm) MIL G 83528 < 0.10 Density (g/cm ) ASTM D 792 2.30
3
Method A
Hardness (shore A) ASTM D 2240 65 Break resistance (Mpa) ASTM D 412 1.30
Density (g/cm ) ASTM D 792 2 Method A C
3
Method A Elongation at break (%) ASTM D 412 200
Break resistance (Mpa) ASTM D 412 1.37 Method A C
Method A C Tear resistance (N/mm) ASTM D 624 C 6.08
Elongation at break (%) ASTM D 412 150 Residual deformation after
Method A C ASTM D 395
Tear resistance 8.73 compression 70 hours at Method B 25
(N/mm) ASTM D 624 C 100°C (%)
Residual deformation after Continuous operating -55°C to
compression 70 hours at 100°C ASTM D 395 40 temperature +150°C
Method B
(%) available formats Color Dark grey
Continuous operating -55°C to
temperature +150°C Molded
Color Dark grey available formats
Customized cutting
Molded
Extruded
Customized cutting
Adhered by vulcanization
Extruded
Sheet
Adhered by vulcanization
Adhesive
Sheet
Adhesive
