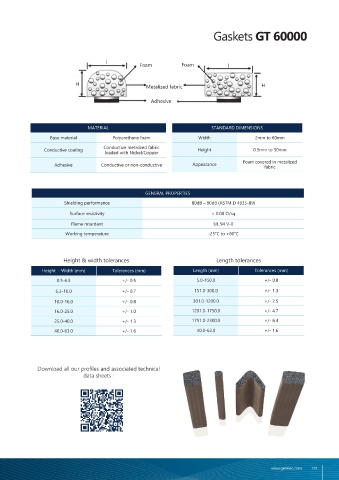

Conductive metalized fabrics Gaskets GT 60000

Conductive metalized fabrics are structures made from polyamide synthetic fibers coated with metallic
conductive materials (copper, nickel, silver). These metalized fabrics fixed on silicone or various foam supports l Foam Foam
make it possible to create shielding gaskets for computer applications, mobile radios, cell phones and other l
electronic instruments.
H H
Applications Presentation Metalized fabric
- Telecommunication - Customized cutting Adhesive
- IT - Roll
- Automotive
- Medical equipment
- Military… MATERIAL STANDARD DIMENSIONS
Base material Polyurethane foam Width 2mm to 60mm
GT 6500 NA GT 6500 NE GT 6500 NI
Metalization Nickel / Copper / Silver Nickel / Copper Nickel / Copper / Nickel Conductive coating Conductive metalized fabric Height 0.5mm to 30mm
loaded with Nickel/Copper
Thickness 0.15 mm 0.28 mm 0.10 mm
Working temperature -30°C to +90°C -30°C to +90°C -30°C to +90°C Adhesive Conductive or non-conductive Appearance Foam covered in metalized
fabric
Volume resistivity < 0.02 Ω/sq < 0.09 Ω/sq 0.01 Ω/sq
Shielding performance :
Electric field > 80dB to 30 MHz to 10GHz > 90dB to 30 MHz to 10GHz > 70dB to 30MHz to 10GHz
Magnetic field MIL-STD-285
Weight g/m² 60 ± 5% 75 ± 5% 82 ± 5% GENERAL PROPERTIES
Roll width 130 cm 100 cm 107 cm Shielding performance 80dB – 90dB (ASTM D 4935-89)
Formats PW (woven) or RS (Rip stop) NW (Not woven) Woven Rip Stop
Surface resistivity < 0.08 Ω/sq
Flame retardant UL 94 V-0

Silicone foam & conductive fabric coating GTMC 21 Working temperature -25°C to +80°C

GT21 silicone foam vulcanized on conductive metalized fabric. Height & width tolerances Length tolerances

Height - Width (mm) Tolerances (mm) Length (mm) Tolerances (mm)
Use
The thickness of the foam coupled with the softness of the fabric considerably 0.5-6.3 +/- 0.5 5.0-150.0 +/- 0.8
improve contact between the fabric and the printed circuit shielding screens. 6.3-10.0 +/- 0.7 151.0-300.0 +/- 1.3
The foam is slightly compressed between the top and the upperedge of the
screens, thus increasing the pressure of the fabric on the various parts in 10.0-16.0 +/- 0.8 301.0-1200.0 +/- 2.5
contact. The ensures improved electrical continuity. 16.0-25.0 +/- 1.0 1201.0-1750.0 +/- 4.7

25.0-40.0 +/- 1.3 1751.0-2300.0 +/- 6.4
Formats
• Sheet size 280mm x 280mm 40.0-63.0 +/- 1.6 40.0-63.0 +/- 1.6
• Thickness: 1mm to 2mm
• Tolerances : ± 0.3mm
• Customized cutting (contacts us)
Download all our profiles and associated technical
Notes data sheets :
It is recommended
not to use expanded GT 21
material above a Type Closed cell cellular material
compression of 50% Hardness (shore A ±5) 20
(risk of cell wall rupture 3
and strong residual Density (g/cm ) 0.60
deformations). 20 to Color Off-white (other color on request)
30% compression is Working temperature -55°C to +200°C
recommended.
