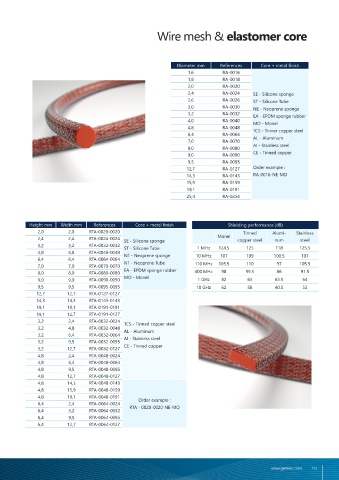

Ventilation panels Wire mesh & elastomer core

Often used for the electromagnetic shielding of ventilation openings, ventilation panels allow free air Diameter mm References Core + metal finish
circulation while ensuring a high level of EMI/RFI protection. 1,6 RA-0016

1,8 RA-0018
GETELEC ventilation panels are made up of a honeycomb filter and a frame and a frame to ensure rigidity. 2,0 RA-0020
These filters can be made of Surtec-treated aluminum for applications where H-field performance is not 2,4 RA-0024 SE - Silicone sponge
too high, or of tin-plated steel where good attenuation in H-field and E-field is required. 2,6 RA-0026 ST - Silicone Tube
3,0 RA-0030 NE - Neoprene sponge
3,2 RA-0032
Electrical continuity between the ventilation panel and the support is ensured by a conductive elastomer 4,0 RA-0040 EA - EPDM sponge rubber
gasket or metal braid. These filters are manufactured according to customer drawings and specifications. 4,8 RA-0048 MO - Monel

6,4 RA-0064 TCS - Tinner copper steel
7,0 RA-0070 AL - Aluminum
8,0 RA-0080 AI - Stainless steel
9,0 RA-0090 CE - Tinned copper
aluminum honeycomb aTTenuaTion Tinned sTeel honeycomb aTTenuaTion 9,5 RA-0095
12,7 RA-0127 Order example :
Fields Frequencies Attenuation (dB) Fields Frequencies Attenuation (dB) 14,3 RA-0143 RA-0016-NE-MO
H - fields 100 KHz 20 dB H - fields 100 KHz 85 dB 15,9 RA-0159
1 MHz 35 dB 1 MHz 120 dB 19,1 RA-0191
E - Fields E - Fields 25,4 RA-0254
100 MHz 90 dB 100 MHz 130 dB
Plane wave 1 GHz 55 dB Plane wave 1 GHz 120 dB

Height mm Width mm References Core + metal finish Shielding performance (dB)
2,0 2,0 RTA-0020-0020 Tinned Alumi- Stainless
geTelec venTilaTion panels sTandards dimensions 2,4 2,4 RTA-0024-0024 SE - Silicone sponge Monel copper steel num steel
3,2 3,2 RTA-0032-0032
Airflow Cell diameter Honeycomb thickness Frame thickness ST - Silicone Tube 1 MHz 124.5 125 118 125.5
4,8 4,8 RTA-0048-0048
83% 3.2 mm 6.35 mm 9.50 mm 6,4 6,4 RTA-0064-0064 NE - Neoprene sponge 10 MHz 107 109 100.5 107
83% 3.2 mm 12.70 mm 15.90 mm 7,0 7,0 RTA-0070-0070 NT - Neoprene Tube 110 MHz 105.5 110 97 105.5
8,0 8,0 RTA-0080-0080 EA - EPDM sponge rubber 400 MHz 98 99.5 86 91.5
9,0 9,0 RTA-0090-0090 MO - Monel 1 GHz 82 63 63.5 64
9,5 9,5 RTA-0095-0095 10 GHz 62 58 40.5 52
12,7 12,7 RTA-0127-0127
14,3 14,3 RTA-0143-0143
19,1 19,1 RTA-0191-0191
Tolerances : 19,1 12,7 RTA-0191-0127
Linear : ± 0.8mm 3,2 2,4 RTA-0032-0024 TCS - Tinned copper steel
Between centers : ± 0.4mm 3,2 4,8 RTA-0032-0048 AL - Aluminum
Drilling : ± 0.15mm 3,2 6,4 RTA-0032-0064 AI - Stainless steel
Frame : ± 0.10mm 3,2 9,5 RTA-0032-0095
3,2 12,7 RTA-0032-0127 CE - Tinned copper
4,8 2,4 RTA-0048-0024
4,8 6,4 RTA-0048-0064
4,8 9,5 RTA-0048-0095
4,8 12,7 RTA-0048-0127
4,8 14,3 RTA-0048-0143
4,8 15,9 RTA-0048-0159
4,8 19,1 RTA-0048-0191
Useful dimensions to give us for quotation Order example :
6,4 2,4 RTA-0064-0024
6,4 3,2 RTA-0064-0032 RTA - 0020-0020-NE-MO
6,4 9,5 RTA-0064-0095
6,4 12,7 RTA-0064-0127

124
375 Avenue Morane Saulnier 78530 - Buc, France www.getelec.com 125
Tel : +331 39 20 42 42 | info@getelec.com
