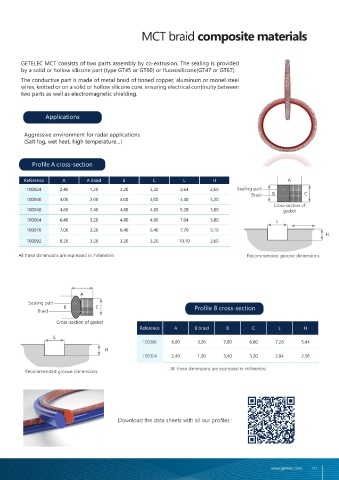

Diameter Width MCT braid composite materials
mm mm References Core + metal finish
2,4 9,5 PA-0024-0095 SE - Silicone sponge
2,4 12,7 PA-0024-0127 ST - Silicone Tube
3,2 9,5 PA-0032-0095 NE - Neoprene sponge GETELEC MCT consists of two parts assembly by co-extrusion. The sealing is provided
3,2 12,7 PA-0032-0127 NT - Neoprene Tube by a solid or hollow silicone part (type GT45 or GT60) or fluorosilicone(GT47 or GT67).
3,2 15,9 PA-0032-0159 EA - EPDM sponge rubber The conductive part is made of metal braid of tinned copper, aluminum or monel steel
3,2 19,1 PA-0032-0191 wires, knitted or on a solid or hollow silicone core, ensuring electrical continuity between
MO - Monel two parts as well as electromagnetic shielding.
4,8 12,7 PA-0048-0127 TCS - Tinned copper steel
4,8 15,9 PA-0048-0159 AL - Aluminum
4,8 19,1 PA-0048-0191 AI - Stainless steel
CE - Tinned copper Applications
6,4 12,7 PA-0064-0127
6,4 15,9 PA-0064-0159 Aggressive environment for radar applications
6,4 19,1 PA-0064-0191 (Salt fog, wet heat, high temperature…)
8,0 15,9 PA-0080-0159 Order example :
8,0 19,1 PA-0080-0191 PA-0024-0095-NE-MO
9,0 15,9 PA-0090-0159 Profile A cross-section
9,0 19,1 PA-0090-0191
Reference A A Braid B C L H A
100024 2,40 1,20 3,20 3,20 2,64 2,60 Sealing part
Braid B C
100040 4,00 2,00 4,00 4,00 4,40 3,20
Cross-section of
100048 4,80 2,40 4,80 4,80 5,28 3,80 gasket

100064 6,40 3,20 4,80 4,80 7,04 3,80 L
Diameter Width References Core + metal finish 100070 7,00 3,20 6,40 6,40 7,70 5,10
mm mm H
100092 9,20 3,20 3,20 3,20 10,10 2,60
2,4 9,5 DPA-0024-0095

2,4 12,7 DPA-0024-0127 SE - Silicone sponge All these dimensions are expressed in millimeters Recommended groove dimensions
ST - Silicone Tube
3,2 9,5 DPA-0032-0095 NE - Neoprene sponge
NT - Neoprene Tube
3,2 12,7 DPA-0032-0127 EA - EPDM sponge rubber
A
3,2 15,9 DPA-0032-0159
Sealing part B C
4,8 15,9 DPA-0048-0159 Braid Profile B cross-section
Cross-section of gasket
4,8 19,1 DPA-0048-0191 MO - Monel Reference A B braid B C L H
TCS - Tinned copper steel L
6,4 15,9 DPA-0064-0159 AL - Aluminum 150066 6,60 3,20 7,00 6,80 7,26 5,44
AI - Stainless steel H
6,4 19,1 DPA-0064-0191 CE - Tinned copper 150024 2,40 1,20 3,40 3,20 2,64 2,56

6,4 25,4 DPA-0064-0254 All these dimensions are expressed in millimeters
Recommended groove dimensions
8,0 19,1 DPA-0080-0191
Order example :
8,0 25,4 DPA-0080-0254
DPA-0024-0095-NE-MO
9,0 32,0 DPA-0090-0320
Download the data sheets with all our profiles :
