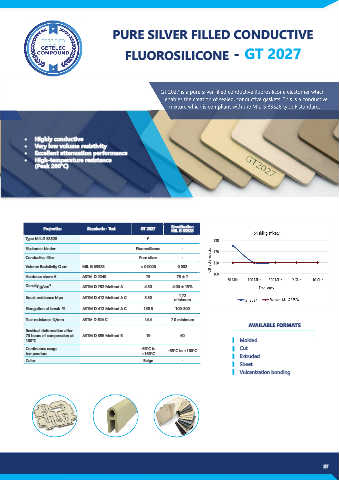

PURE SILVER FILLED CONDUCTIVE

FLUOROSILICONE - GT 2027

GT 2024 is a conductive pure silver filled silicone elastomer, GT 2027 is a pure silver filled conductive fluorosilicone elastomer which
which enables the creation of sealed conductive gaskets. This is a enables the creation of sealed, conductive gaskets. This is a conductive
highly conductive mixture enable to resist to highest temperature mixture which is compliant with the MIL G 83528 type F standard.
(Peak 200°C)

• Highly conductive
• Very low volume resistivity
• Excellent attenuation performance
• High-temperature resistance
(Peak 200°C)

Specification
Properties Standards - Test GT 2027
MIL G 83528
Type MIL G 83528 F -
Elastomer binder Fluorosilicone -
Conductive filler Pure silver -
Volume Resistivity Ω.cm MIL G 83528 < 0.0006 0.002
Hardness shore A ASTM D 2240 75 75 ± 7
Density g/cm 3 ASTM D 792 Method A 4.30 4.00 ± 13%
1.72
Break resistance Mpa ASTM D 412 Method A C 3.30 minimum
Elongation at break % ASTM D 412 Method A C 158.5 100-300
Tear resistance N/mm ASTM D 624 C 14.4 7.0 minimum
AVAILABLE FORMATS
Residual deformation after
70 hours of compression at ASTM D 395 Method B 19 60
100°C Molded
Continuous usage -55°C to -55°C to +160°C Cut
temperature +160°C Extruded
Color Beige -
Sheet
Vulcanization bonding
