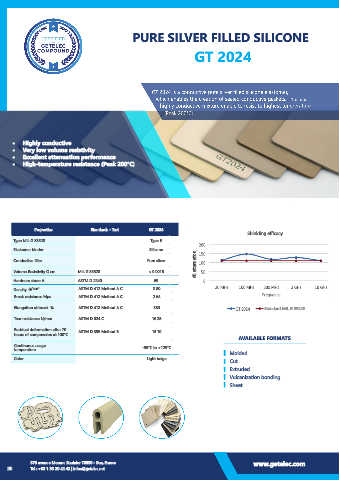

PURE SILVER FILLED SILICONE

GT 2024

GT 2024 is a conductive pure silver filled silicone elastomer,
which enables the creation of sealed conductive gaskets. This is a
highly conductive mixture enable to resist to highest temperature
(Peak 200°C)

• Highly conductive
• Very low volume resistivity
• Excellent attenuation performance
• High-temperature resistance (Peak 200°C)

Properties Standards - Test GT 2024
Shielding efficacy
Type MIL G 83528 Type E
160
Elastomer binder Silicone 140
dB attenuation 100
Conductive filler Pure silver 120
Volume Resistivity Ω.cm MIL G 83528 < 0.0016 80
Hardness shore A ASTM D 2240 69 60
40
Density g/cm 3 ASTM D 412 Method A C 3.80
20
Break resistance Mpa ASTM D 412 Method A C 2.64 0
20 MHz 100 MHz 500 MHz 2 GHz1 0 GHz
Elongation at break % ASTM D 412 Method A C 380 Standard MIL G 83528
GT2020
Tear resistance N/mm ASTM D 624 C 16.28

Residual deformation after 70 ASTM D 395 Method B 15.10
hours of compression at 100°C
AVAILABLE FORMATS
Continuous usage -55°C to +125°C
temperature
Molded
Color Light beige
Cut
Extruded
Vulcanization bonding
Sheet
