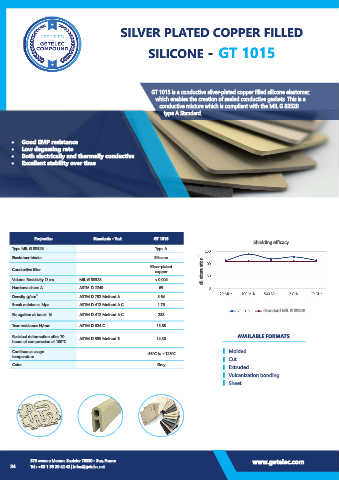

SILVER PLATED COPPER FILLED

SILICONE - GT 1015

GT 1015 is a conductive silver-plated copper filled silicone elastomer,
which enables the creation of sealed conductive gaskets. This is a
conductive mixture which is compliant with the MIL G 83528
type A Standard.

• Good EMP resistance
• Low degassing rate
• Both electrically and thermally conductive
• Excellent stability over time

Properties Standards - Test GT 1015
Shielding efficacy
Type MIL G 83528 Type A
Elastomer binder Silicone
Silver-plated
Conductive filler
copper dB attenuation
Volume Resistivity Ω.cm MIL G 83528 < 0.004
Hardness shore A ASTM D 2240 69
Density g/cm 3 ASTM D 792 Method A 3.64
Break resistance Mpa ASTM D 412 Method A C 1.78
Standard MIL G 83528
Elongation at break % ASTM D 412 Method A C 283

Tear resistance N/mm ASTM D 624 C 13.83
Residual deformation after 70 ASTM D 395 Method B 14.30 AVAILABLE FORMATS
hours of compression at 100°C
Continuous usage Molded
temperature -55°C to +125°C
Cut
Color Grey
Extruded
Vulcanization bonding
Sheet
