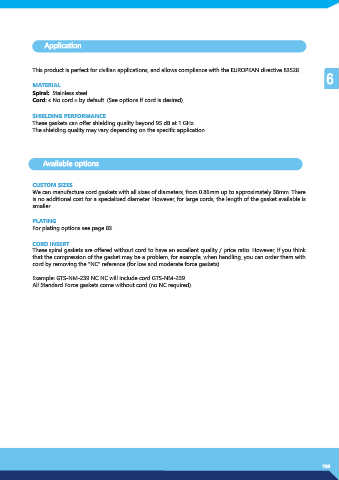

Page 133 - GETELEC - Products and solutions Catalog

Application

This product is perfect for civilian applications, and allows compliance with the EUROPEAN directive 83528.
6

MATERIAL
Spiral: Stainless steel.
Cord: « No cord » by default. (See options if cord is desired).

SHIELDING PERFORMANCE
These gaskets can offer shielding quality beyond 95 dB at 1 GHz.
The shielding quality may vary depending on the specific application.

Available options

CUSTOM SIZES
We can manufacture cord gaskets with all sizes of diameters, from 0.86mm up to approximately 38mm. There
is no additional cost for a specialized diameter. However, for large cords, the length of the gasket available is
smaller.

PLATING
For plating options see page 83.

CORD INSERT
These spiral gaskets are offered without cord to have an excellent quality / price ratio. However, if you think
that the compression of the gasket may be a problem, for example, when handling, you can order them with
cord by removing the "NC" reference (for low and moderate force gaskets).

Example: GTS-NM-239 NC NC will include cord GTS-NM-239.
All Standard Force gaskets come without cord (no NC required).

133
