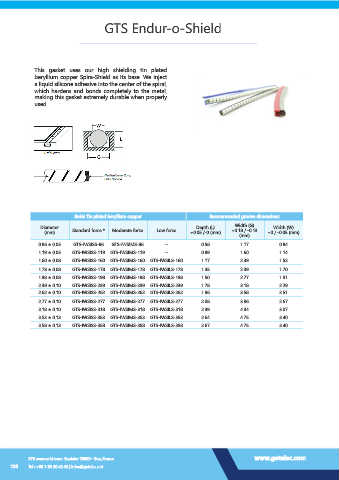

GTS Endur-o-Shield

This gasket uses our high shielding tin plated
beryllium copper Spira-Shield as its base. We inject
a liquid silicone adhesive into the center of the spiral,
which hardens and bonds completely to the metal,
making this gasket extremely durable when properly
used.

RoHs Tin plated beryllium copper Recommended groove dimensions
Width (G)
Diameter Standard force * Moderate force Low force Depth (L) +0.18 / -0.13 Width (W)
(mm) +0.05 /-0 (mm) +0 / -0.05 (mm)
(mm)
0.86 ± 0.05 GTS-IWSISS-86 GTS-IWSIMS-86 -- 0.58 1.17 0.84
1.19 ± 0.05 GTS-IWSISS-119 GTS-IWSIMS-119 -- 0.89 1.60 1.14
1.60 ± 0.08 GTS-IWSISS-160 GTS-IWSIMS-160 GTS-IWSILS-160 1.17 2.39 1.52
1.78 ± 0.08 GTS-IWSISS-178 GTS-IWSIMS-178 GTS-IWSILS-178 1.35 2.39 1.70
1.98 ± 0.08 GTS-IWSISS-198 GTS-IWSIMS-198 GTS-IWSILS-198 1.50 2.77 1.91
2.39 ± 0.10 GTS-IWSISS-239 GTS-IWSIMS-239 GTS-IWSILS-239 1.78 3.18 2.29
2.62 ± 0.10 GTS-IWSISS-262 GTS-IWSIMS-262 GTS-IWSILS-262 1.96 3.58 2.51
2.77 ± 0.10 GTS-IWSISS-277 GTS-IWSIMS-277 GTS-IWSILS-277 2.08 3.96 2.67
3.18 ± 0.10 GTS-IWSISS-318 GTS-IWSIMS-318 GTS-IWSILS-318 2.39 4.34 3.07
3.53 ± 0.13 GTS-IWSISS-353 GTS-IWSIMS-353 GTS-IWSILS-353 2.64 4.75 3.40
3.58 ± 0.13 GTS-IWSISS-358 GTS-IWSIMS-358 GTS-IWSILS-358 2.67 4.75 3.40
