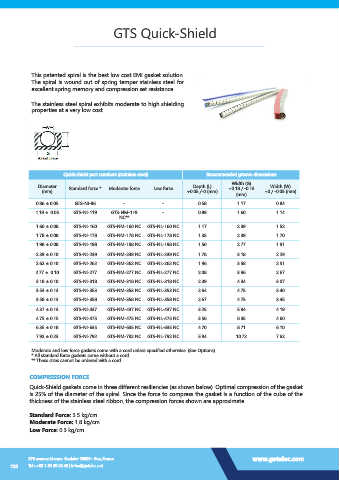

Page 132 - GETELEC - Products and solutions Catalog

GTS Quick-Shield

This patented spiral is the best low cost EMI gasket solution.
The spiral is wound out of spring temper stainless steel for
excellent spring memory and compression set resistance.

The stainless steel spiral exhibits moderate to high shielding
properties at a very low cost.

Quick-shield part numbers (stainless steel) Recommended groove dimensions
Width (G)
Diameter Standard force * Moderate force Low force Depth (L) +0.18 / -0.13 Width (W)
(mm) +0.05 /-0 (mm) +0 / -0.05 (mm)
(mm)
0.86 ± 0.05 GTS-NI-86 - - 0.58 1.17 0.84
1.19 ± .0.05 GTS-NI-119 GTS-NM-119 - 0.89 1.60 1.14
NC**
1.60 ± 0.08 GTS-NI-160 GTS-NM-160 NC GTS-NL-160 NC 1.17 2.39 1.52
1.78 ± 0.08 GTS-NI-178 GTS-NM-178 NC GTS-NL-178 NC 1.35 2.39 1.70
1.98 ± 0.08 GTS-NI-198 GTS-NM-198 NC GTS-NL-198 NC 1.50 2.77 1.91
2.39 ± 0.10 GTS-NI-239 GTS-NM-239 NC GTS-NL-239 NC 1.78 3.18 2.29
2.62 ± 0.10 GTS-NI-262 GTS-NM-262 NC GTS-NL-262 NC 1.96 3.58 2.51
2.77 ± .0.10 GTS-NI-277 GTS-NM-277 NC GTS-NL-277 NC 2.08 3.96 2.67
3.18 ± 0.10 GTS-NI-318 GTS-NM-318 NC GTS-NL-318 NC 2.39 4.34 3.07
3.53 ± 0.13 GTS-NI-353 GTS-NM-353 NC GTS-NL-353 NC 2.64 4.75 3.40
3.58 ± 0.13 GTS-NI-358 GTS-NM-358 NC GTS-NL-358 NC 2.67 4.75 3.45
4.37 ± 0.13 GTS-NI-437 GTS-NM-437 NC GTS-NL-437 NC 3.25 5.94 4.19
4.75 ± 0.15 GTS-NI-475 GTS-NM-475 NC GTS-NL-475 NC 3.56 6.35 4.60
6.35 ± 0.18 GTS-NI-635 GTS-NM-635 NC GTS-NL-635 NC 4.70 8.71 6.10
7.92 ± 0.23 GTS-NI-792 GTS-NM-792 NC GTS-NL-792 NC 5.94 10.72 7.62

Moderate and low force gaskets come with a cord unless specified otherwise. (See Options).
* All standard force gaskets come without a cord.
** These sizes cannot be ordered with a cord.

COMPRESSION FORCE
Quick-Shield gaskets come in three different resiliencies (as shown below). Optimal compression of the gasket
is 25% of the diameter of the spiral. Since the force to compress the gasket is a function of the cube of the
thickness of the stainless steel ribbon, the compression forces shown are approximate.

Standard Force: 5.5 kg/cm
Moderate Force: 1.8 kg/cm
Low Force: 0.3 kg/cm
