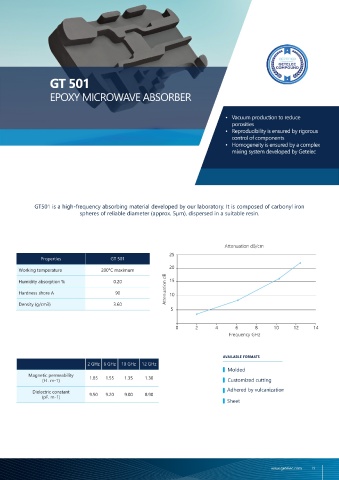

GT 501

EPOXY MICROWAVE ABSORBER

• Vacuum production to reduce
porosities
• Reproducibility is ensured by rigorous
control of components
• Homogeneity is ensured by a complex
mixing system developed by Getelec

GT501 is a high-frequency absorbing material developed by our laboratory. It is composed of carbonyl iron
INDIVIDUAL TECHNICAL
spheres of reliable diameter (approx. 5µm), dispersed in a suitable resin.

SHEETS Properties GT 501 25 Attenuation dB/cm

Working temperature 200°C maximum 20
Attenuation dB
Humidity absorption % 0.20 15

Hardness shore A 90 10
Density (g/cm3) 3.60
5

0 2 4 6 8 10 12 14
Frequency GHz

available formats
2 GHz 6 GHz 10 GHz 12 GHz
Molded
Magnetic permeability 1.85 1.55 1.35 1.30
(H . m-1) Customized cutting
Adhered by vulcanization
Dielectric constant 9.50 9.20 9.00 8.90
(pF. m-1)
Sheet
