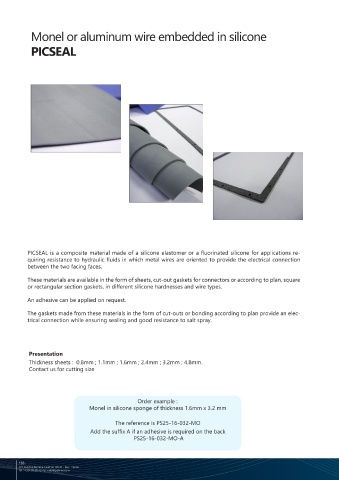

Monel or aluminum wire embedded in silicone

PICSEAL

Characteristics

Number of wires/cm² 100 to 150
Working temperature -65°C to +200°C

Silicone or closed cell foam hardness 25 or 40 or 60 shore A
Metal wires Monel / TCS / Aluminum

Compression Minimum 10% - maximum 30%
Attenuations 100dB to 10MHz

Reference Description Hardness shore A

PS 35 – MO Monel in silicone 40
PS 35 – AL Aluminum in silicone 40

PS 25 – MO Monel in sponge silicone 25

PS 25 – AL Aluminum in sponge silicone 25

PS 35 F – MO Monel in fluorosilicone 60
PICSEAL is a composite material made of a silicone elastomer or a fluorinated silicone for applications re-
quiring resistance to hydraulic fluids in which metal wires are oriented to provide the electrical connection PS 35 F – AL Aluminum in fluorosilicone 60
between the two facing faces.
These materials are available in the form of sheets, cut-out gaskets for connectors or according to plan, square
or rectangular section gaskets, in different silicone hardnesses and wire types.

An adhesive can be applied on request. Thickness Widths

The gaskets made from these materials in the form of cut-outs or bonding according to plan provide an elec- 3.2 mm 4.8 mm 6.4 mm 9.5 mm
trical connection while ensuring sealing and good resistance to salt spray. 1.6 mm Ref. 16-032 Ref. 16-048 Ref. 16-064 Ref. 16-095

3.2 mm Ref. 32-032 Ref. 32-048 Ref. 32-064 Ref. 32-095

4.8 mm Ref. 48-032 Ref. 48-048 Ref. 48-064 Ref. 48-095
Presentation
Thickness sheets : 0.8mm ; 1.1mm ; 1.6mm ; 2.4mm ; 3.2mm ; 4.8mm. 6.4 mm Ref. 64-032 Ref. 64-048 Ref. 64-064 Ref. 64-095
Contact us for cutting size
8.0 mm Ref. 80-032 Ref. 80-048 Ref. 80-064 Ref. 80-095

Other dimensions are available on request.
Order example :
Monel in silicone sponge of thickness 1.6mm x 3.2 mm

The reference is PS25-16-032-MO
Add the suffix A if an adhesive is required on the back
PS25-16-032-MO-A
