P. 50

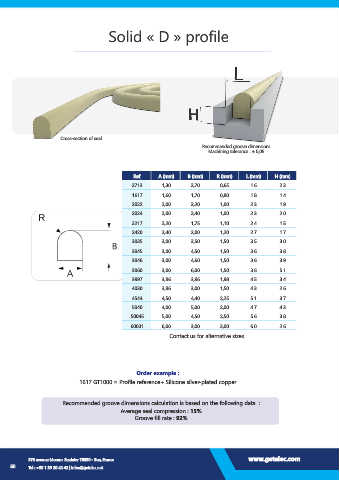

Solid « D » profile
Cross-section of seal
Recommanded groove dimensions
Machining tolerance : ± 0,05
Ref. A (mm) B (mm) R (mm) L (mm) H (mm)
2713 1,30 2,70 0,65 1.6 2.3
1617 1,60 1,70 0,80 1.8 1.4
2022 2,00 2,20 1,00 2.3 1.9
2024 2,00 2,40 1,00 2.3 2.0
2217 2,20 1,75 1,10 2.4 1.5
2420 2,40 2,00 1,20 2.7 1.7
3035 3,00 3,50 1,50 3.5 3.0
3045 3,00 4,50 1,50 3.6 3.8
3046 3,00 4,60 1,50 3.6 3.9
3060 3,00 6,00 1,50 3.6 5.1
3997 3,96 3,96 1,98 4.5 3.4
4030 3,96 3,00 1,50 4.3 2.6
4544 4,50 4,40 2,25 5.1 3.7
5040 4,00 5,00 2,00 4.7 4.3
50045 5,00 4,50 2,50 5.6 3.8
60031 6,00 3,00 3,00 6.0 2.6
Contact us for alternative sizes.
Order example :
1617 GT1000 = Profile reference+ Silicone silver-plated copper
Recommended groove dimensions calculation is based on the following data :
Average seal compression : 15%
Groove fill rate : 92%
