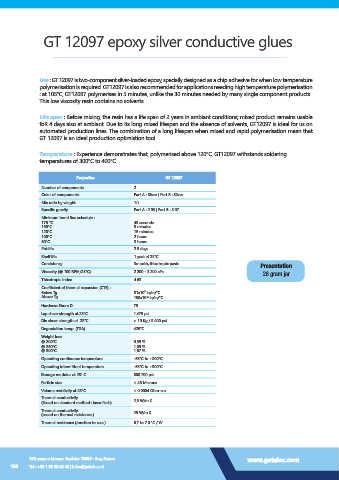

GT 12097 epoxy silver conductive glues

Use : GT 12097 is two-component silver-loaded epoxy, specially designed as a chip adhesive for when low temperature
polymerisation is required. GT12097 is also recommended for applications needing high temperature polymerisation
: at 105°C, GT12097 polymerises in 5 minutes, unlike the 30 minutes needed by many single component products .
This low viscosity resin contains no solvents

Life span : Before mixing, the resin has a life span of 2 years in ambiant conditions; mixed product remains usable
foR 4 days also at ambiant. Due to its long mixed lifespan and the absence of solvents, GT12097 is ideal for us on
automated production lines. The combination of a long lifespan when mixed and rapid polymerisation mean that
GT 12097 is an ideal production optimistion tool.

Temperature : Experience demonstrates that, polymerised above 120°C, GT12097 withstands soldering
temperatures of 300°C to 400°C.

Properties GT 12097
Number of components 2
Color of components Part A : Silver | Part B : Silver
Mix ratio by wieght 1:1
Specific gravity Part A : 2.03 | Part B : 3.07
Minimum bond line schedule :
175 °C 45 seconds
150°C 5 minutes
120°C 15 minutes
100°C 2 hours
80°C 3 hours
Pot life 2.5 days
Shelf life 1 yeat at 23°C
Consistency Smooth, thixotropic paste Presentation
Viscosity (@ 100 RPM/23°C) 2.200 - 3.200 cPs 28 gram jar
Thixotropic Index 4.63
Coefficient of thermal expansion (CTE) :
Below Tg 31x10 in/in/°C
6
Above Tg 158x10 in/in/°C
-8
Hardness Shore D 75
Lap shear strength at 23°C 1.475 psi
Die shear strength at 23°C > 10 Kg / 3.400 psi
Degradation temp. (TGA) 425°C
Weight loss
@ 200°C 0.59 %
@ 250°C 1.09 %
@ 300°C 1.67 %
Operating continuous temperature -55°C to +200°C
Operating intermittent temperature -55°C to +300°C
Storage modulus at 23° C 808.700 psi
Particle size ≤ 45 Microns
Volume resistivity at 23°C ≤ 0.0004 Ohm-cm
Thermal conductivity 2.5 W/m.K
(Based on standard method : laser flash)
Thermal conductivity 29 W/m.K
(based on thermal resistance )
Thermal resistance (Junction to case) 6.7 to 7.0 °C / W
