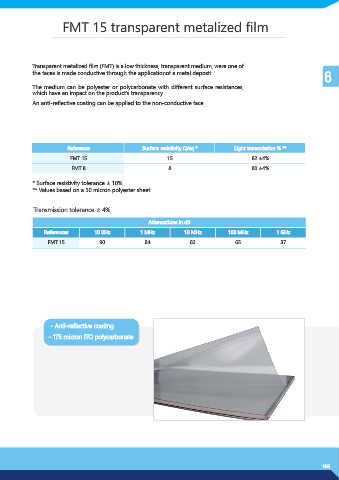

FMT 15 transparent metalized film

Transparent metalized film (FMT) is a low thickness, transparent medium, were one of
6
the faces is made conductive through the applicationof a metal deposit.
The medium can be polyester or polycarbonate with different surface resistances,
which have an impact on the product’s transparency.
An anti-reflective coating can be applied to the non-conductive face.

Reference Surface resistivity Ω/sq * Light transmission % **
FMT 15 15 82 ±4%
FMT 8 8 80 ±4%

* Surface resistivity tolerance ± 10%
** Values based on a 50 micron polyester sheet

Transmission tolerance ± 4%

Attenuations in dB
References 10 KHz 1 MHz 10 MHz 100 MHz 1 GHz
FMT 15 90 84 82 65 37

- Anti-reflective coating

- 175 micron ITO polycarbonate
