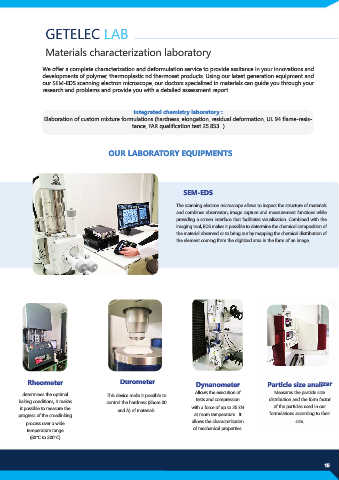

Page 15 - GETELEC - Products and solutions Catalog

GETELEC LAB

Materials characterization laboratory

We offer a complete characterization and deformulation service to provide assitance in your innovations and
developments of polymer, thermoplastic nd thermoset products. Using our latest generation equipment and
our SEM-EDS scanning electron microscope, our doctors specialized in materials can guide you through your
research and problems and provide you with a detailed assessment report.

Integrated chemistry laboratory :
Elaboration of custom mixture formulations (hardness, elongation, residual deformation, UL 94 flame-resis-
tance, FAR qualification test 25.853...)

OUR LABORATORY EQUIPMENTS

SEM-EDS

The scanning electron microscope allows to inspect the structure of materials
and combines observaton, image capture and measurement functions while
providing a screen interface that facilitates visualization. Combined with the
imaging tool, EDS makes it possible to determine the chemical composition of
the material observed or to bring our by mapping the chemical distribution of
the element coming from the digitized area in the form of an image.

Rheometer Durometer Dynanometer Particle size analizer

determines the optimal This device make it possible to Allows the execution of Measures the particle size
baking conditions, it makes control the hardness (Shore 00 tests and compression distribution and the form factor
it possible to measure the and A) of materials. with a force of up to 20 kN of the particles used in our
progress of the crosslinking at room temperature . It formulations according to their
process over a wide allows the characterization size.
temperature range of mechanical properties.
(80°C to 200°C)
