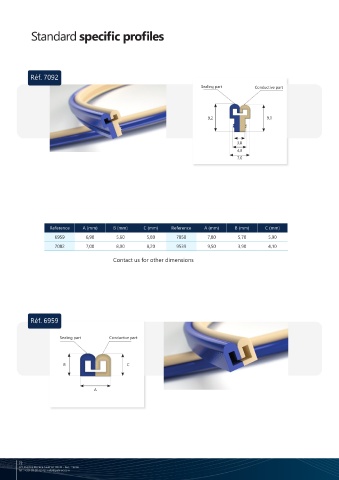

Standard specific profiles Specific GRIP profiles

Thanks to the unique design of our GRIP profiles, our gaskets are naturally self-adhesive. This innovation
Réf. 7092 eliminates the constraints associated with traditional bonding processes, offering a simple, reliable and
Sealing part Conductive part effective solution.

9,2 9,0

3,8
4,8
7,0

l
C

Reference A (mm) B (mm) C (mm) Reference A (mm) B (mm) C (mm)
6959 6,90 5,60 5,80 7858 7,80 5,70 5,90 H
7082 7,00 8,00 8,20 9539 9,50 3,90 4,10 B

Contact us for other dimensions
A

L

Groove Groove Groove width
Réf. 6959 References A (mm) B (mm) C (mm) width depth with fins
L (mm) H (mm) l (mm)
Sealing part Conductive part SF070030192 1.4 1.85 1.95 1.62 1.39 2.30

SF070030325 3.2 2.7 4.4 3.80 2.03 4.80
SF070030406 2.8 2.9 3.5 3.10 2.18 4
B C
SF070030018 2.2 1.8 2.7 2.90 1.35 3.40
SF070030357 3.1 2.6 3.81 3.70 1.95 4.10
A Also available in solid version | Contact us for other dimensions

Recommended groove dimensions calculation is base on the following data :
Groover fill rate : 95%
Recommended groove dimension :
Machining tolerance ± 0.05 mm
