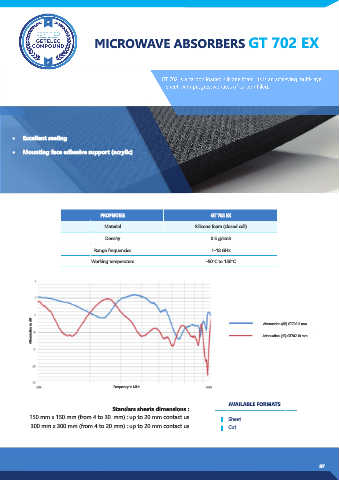

MICROWAVE ABSORBERS GT 702 EX

GT502 is a microwave absorbent material and depending on its use GT 702 is a carbon loaded silicone foam. Its is an achieving multi-layer
shape by molding and cutting, the performance of TOS in the useful band Ka sheet with progressive rates of carbon filled.
are located between -21dB and -30dB. Developed by our laboratory, it is
composed of a carbonyl iron sphere of small diameter in a
suitable resin.

• Excellent sealing
• Mounting face adhesive support (acrylic)

PROPERTIES GT 702 EX

Material Silicone foam (closed cell)

Density 0.5 g/cm3
Range frequencies 1-18 GHz

Working temperature -50°C to 150°C

Attenuation in dB Attenuation (dB) GT702 10 mm
Attenuation (dB) GT702 5 mm

Frequency in MHz

AVAILABLE FORMATS
Standars sheets dimensions :
150 mm x 150 mm (from 4 to 30. mm) : up to 20 mm contact us Sheet
300 mm x 300 mm (from 4 to 20 mm) : up to 20 mm contact us Cut
