GETELEC offers a wide range of products for the environmental sealing of electronic equipment subject to high chemical, mechanical and atmospheric stress. The use of specific silicone grades allows us to offer a complete range of silicone and fluorosilicone products available in hardness ratings between 20 and 90 Shore A.

Our environmental sealing materials are developed in every respect by our chemical engineers. From the selection of raw materials to the final transformation, they create specific formulations for each request and master all the development processes and procedures.

This mastery allows us to define the ideal material according to your equipment and your specifications, in order to offer you a tailor-made insulating solution adapted to your needs.

The quality of our environmental gaskets

  • Flame-retardant silicone UL94 HB, V0
  • Aircraft-grade silicone (AIRBUS ABD0031 and Boeing FAR 25.853 standards)
  • Railway-grade silicone (NFF16-101 and 102 and EN 45545-2 standards)
  • Low outgassing rate (ASTM E 595 standard)
  • Medical grade
  • Food grade
image produit

Discover our range of environmental sealing elastomers:

image produit

Formulated with VMQ silicone, FVMQ fluorosilicone and LSR liquid silicone, these elastomers offer many advantages such as: Resistance to fire, heat, natural ageing, light and ozone, chemical resistance, low degradation of properties due to temperature, gas permeability and absorption as well as outstanding dielectric properties and physiological safety.

Shaping available



All our environmental sealing solutions are available as sheets, extruded profiles, O-rings, moulded or die-cut.

Our know-how and our support policy also includes taking into account your constraints and tolerances, which is why all of our solutions can be made to measure according to your specific plans and manufacturing processes within a short timeframe.



Consult our product catalog online

image produit

Application aeras  :

image produit

Thanks to multiple qualifications, our environmental sealing solutions are particularly suitable for the following applications:

  • Aeronautics (Navigation system, ruggedised computer, on-board electronics and systems, electronic brake control management)
  • Transport
  • Aerospace
  • Energy
  • Automotive
  • Watchmaking

Technical characteristics of our environmental sealing solutions:

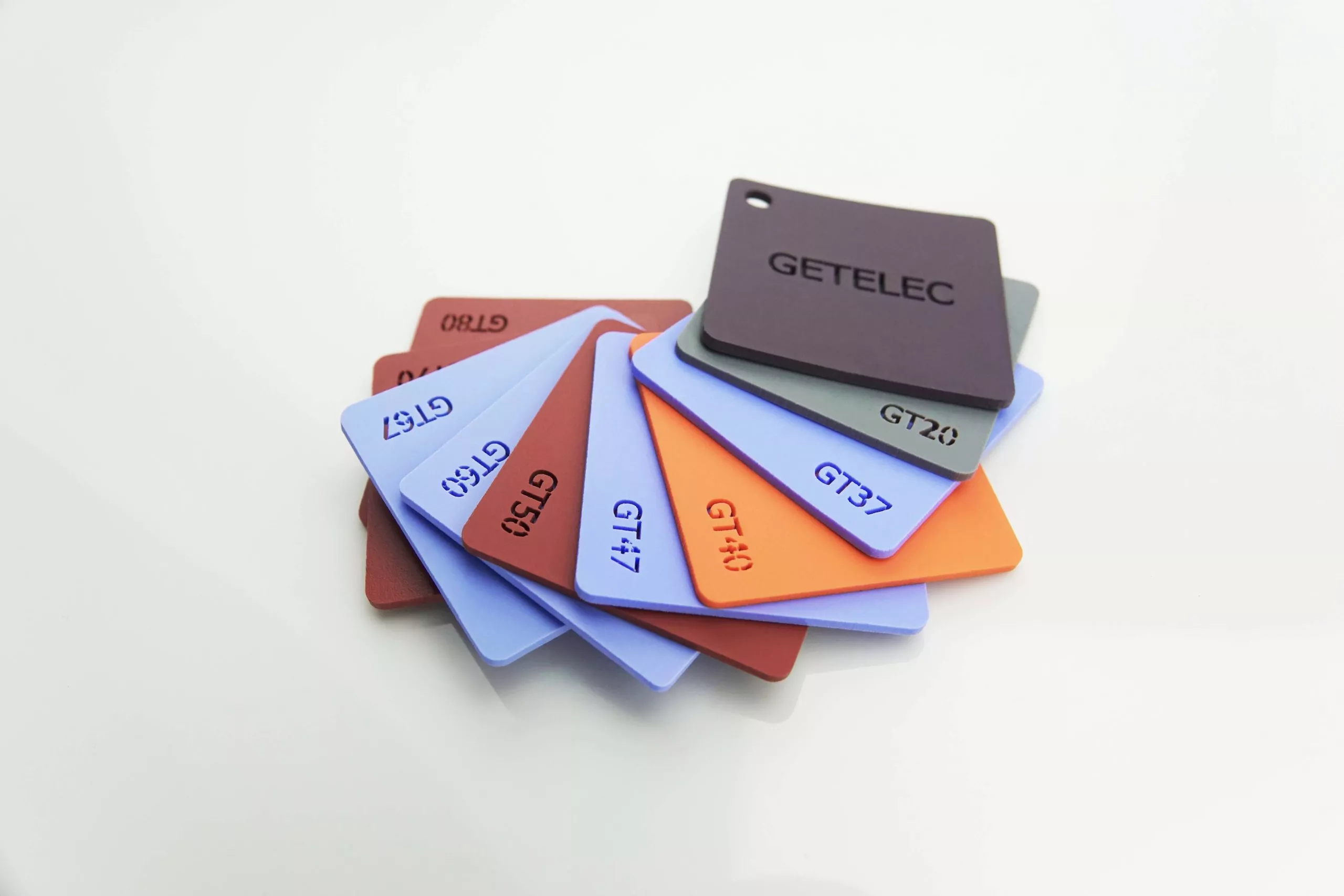

Getelec material reference Elastomer Hardness Shore A (± 5) Technical data sheet
GT20 Silicone 25
GT30 Silicone 30
GT37 Fluorosilicone 30
GT40 Silicone 40
GT47 Fluorosilicone 40
GT50 Silicone 50
GT57 Fluorosilicone 50
GT60 Silicone 60
GT67 Fluorosilicone 60
GT70 Silicone 70
GT77 Fluorosilicone 70
GT80 Silicone 80
Our aviation-grade silicones Silicone 70
Getelec material reference : GT20
Elastomer : Silicone
Hardness Shore A (± 5) : 25
Getelec material reference : GT30
Elastomer : Silicone
Hardness Shore A (± 5) : 30
Getelec material reference : GT37
Elastomer : Fluorosilicone
Hardness Shore A (± 5) : 30
Getelec material reference : GT40
Elastomer : Silicone
Hardness Shore A (± 5) : 40
Getelec material reference : GT47
Elastomer : Fluorosilicone
Hardness Shore A (± 5) : 40
Getelec material reference : GT50
Elastomer : Silicone
Hardness Shore A (± 5) : 50
Getelec material reference : GT57
Elastomer : Fluorosilicone
Hardness Shore A (± 5) : 50
Getelec material reference : GT60
Elastomer : Silicone
Hardness Shore A (± 5) : 60
Getelec material reference : GT67
Elastomer : Fluorosilicone
Hardness Shore A (± 5) : 60
Getelec material reference : GT70
Elastomer : Silicone
Hardness Shore A (± 5) : 70
Getelec material reference : GT77
Elastomer : Fluorosilicone
Hardness Shore A (± 5) : 70
Getelec material reference : GT80
Elastomer : Silicone
Hardness Shore A (± 5) : 80
Getelec material reference : Our aviation-grade silicones
Elastomer : Silicone
Hardness Shore A (± 5) : 70
